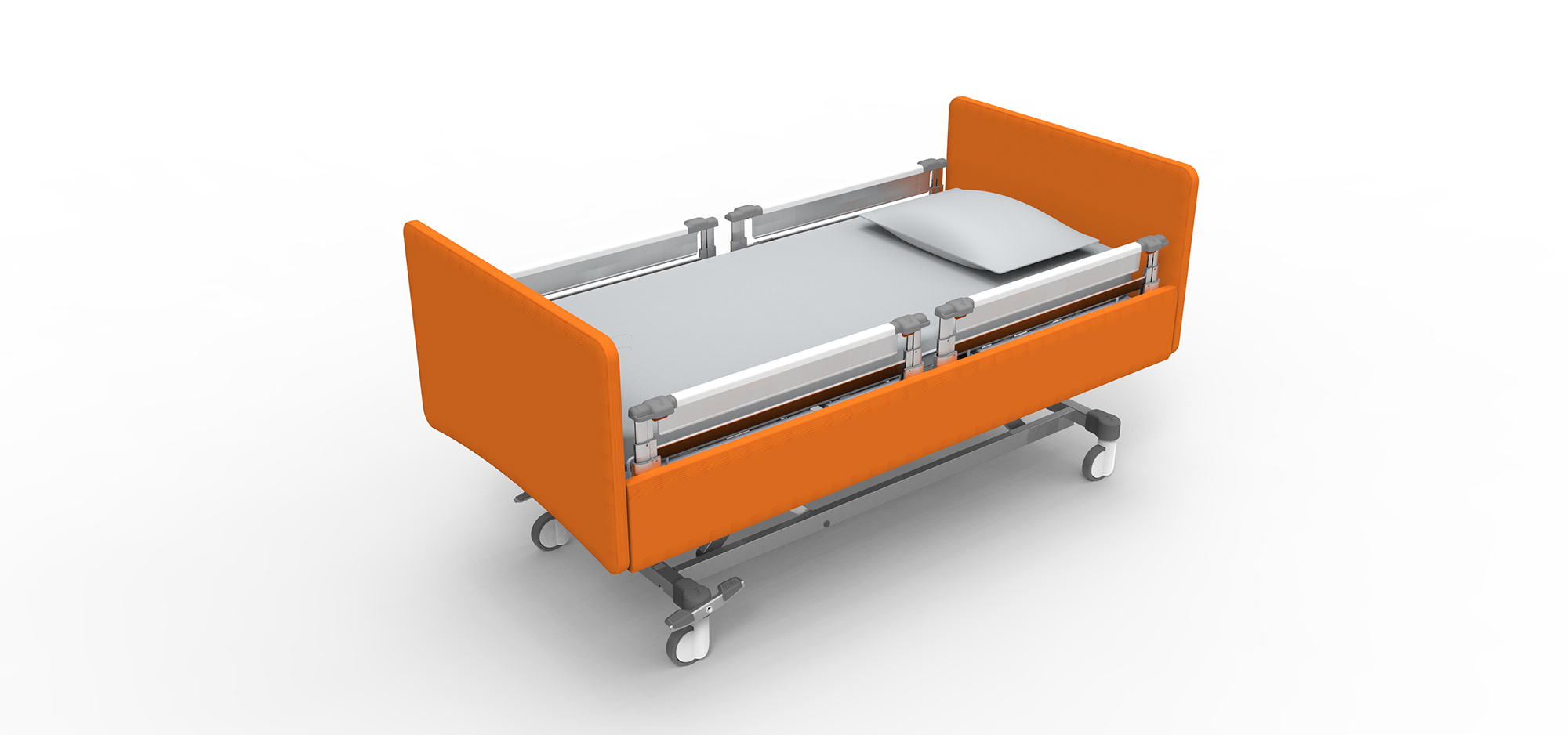

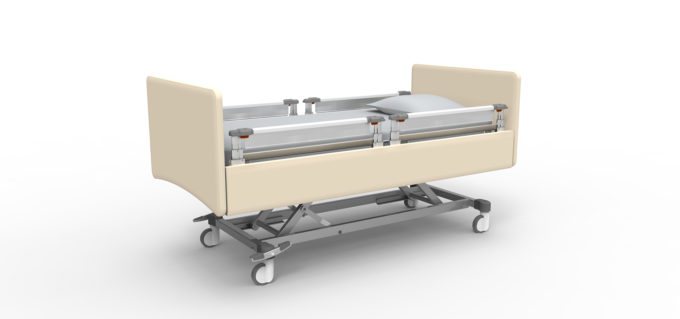

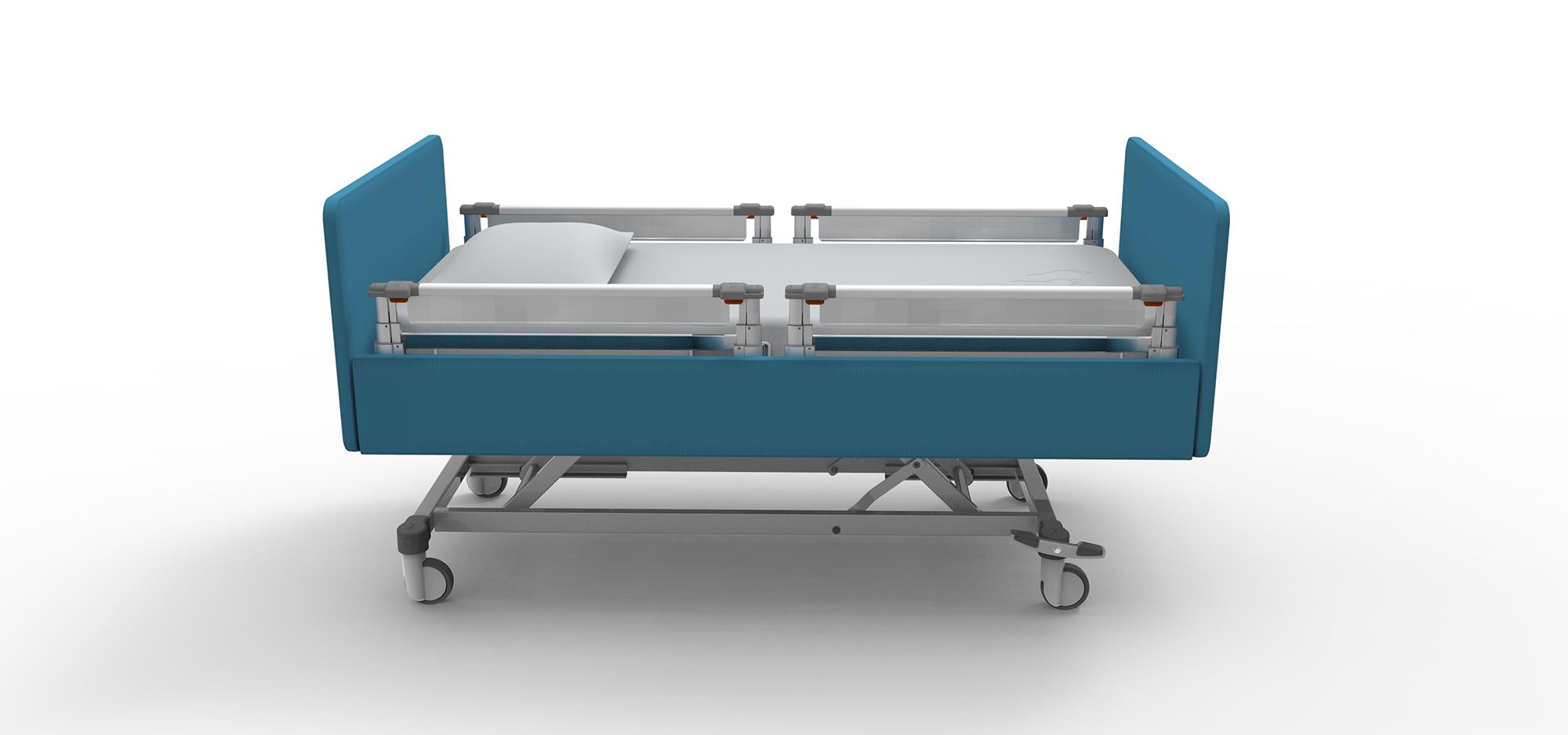

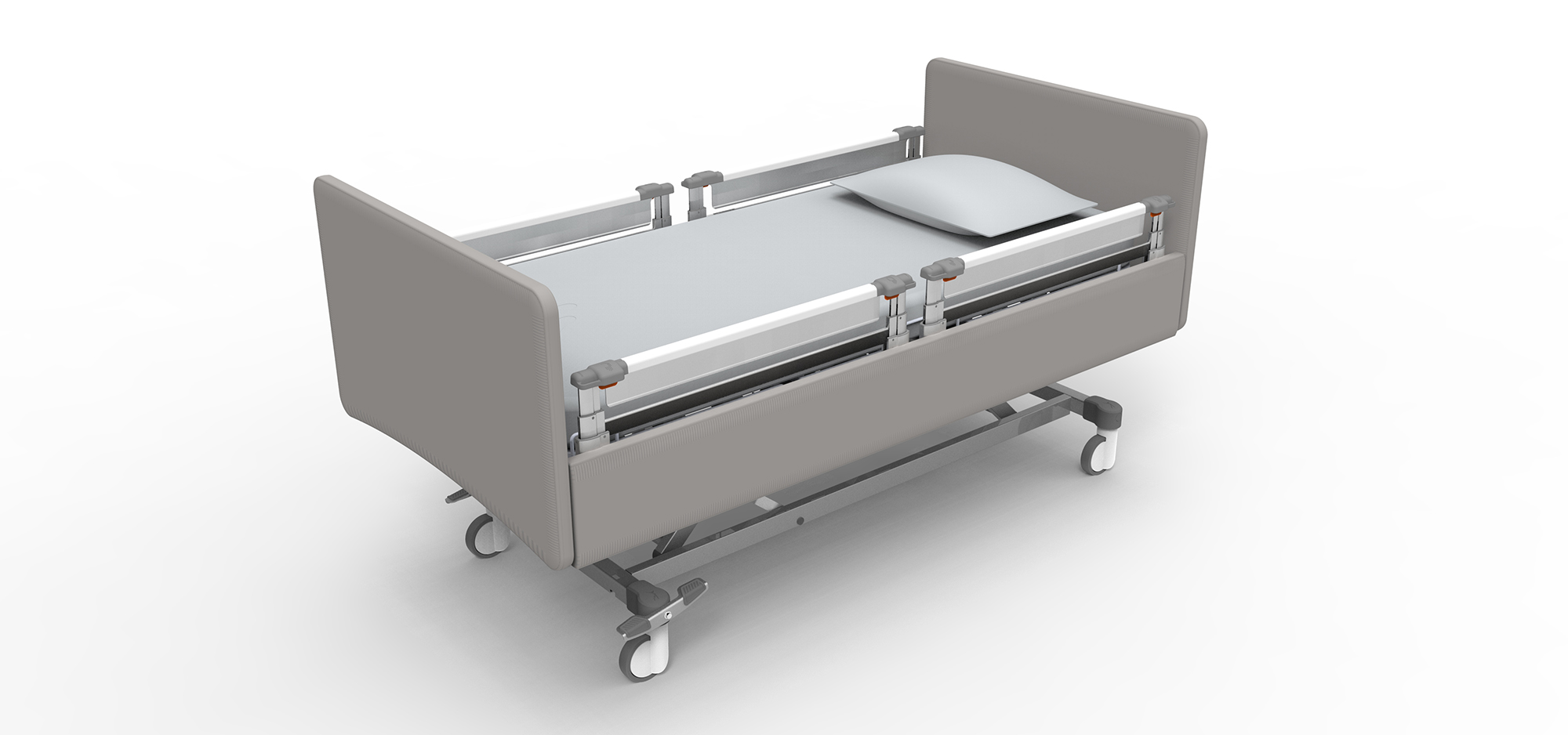

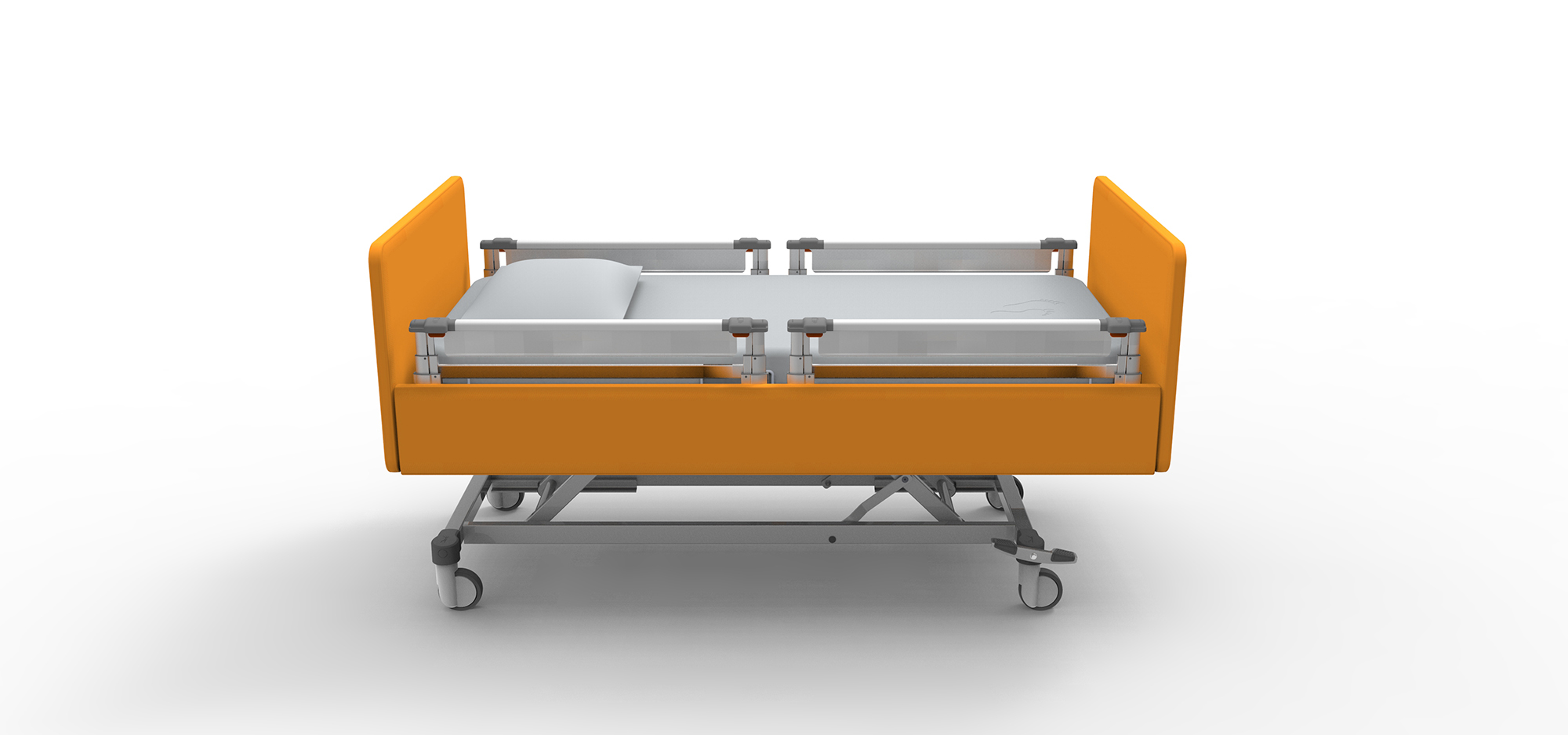

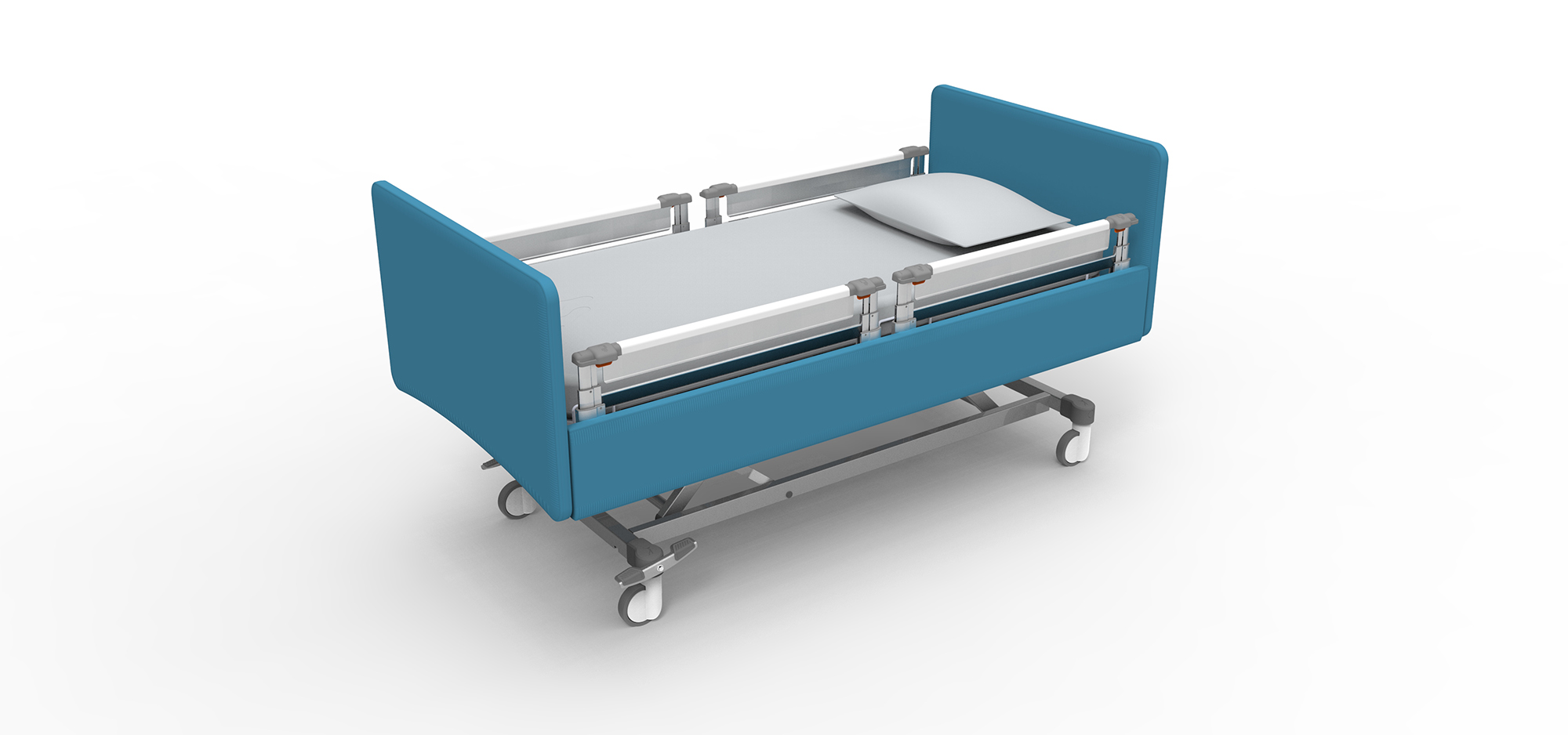

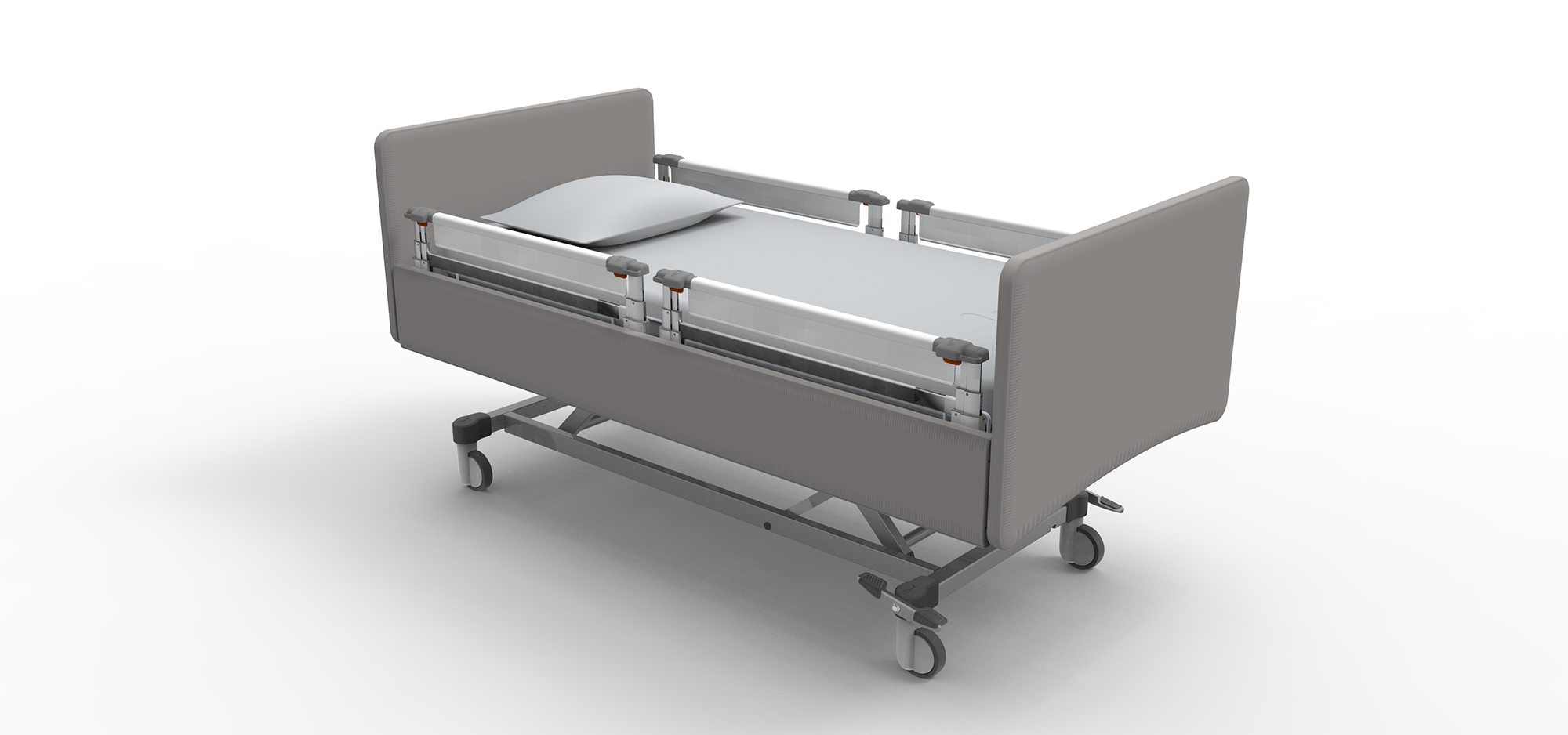

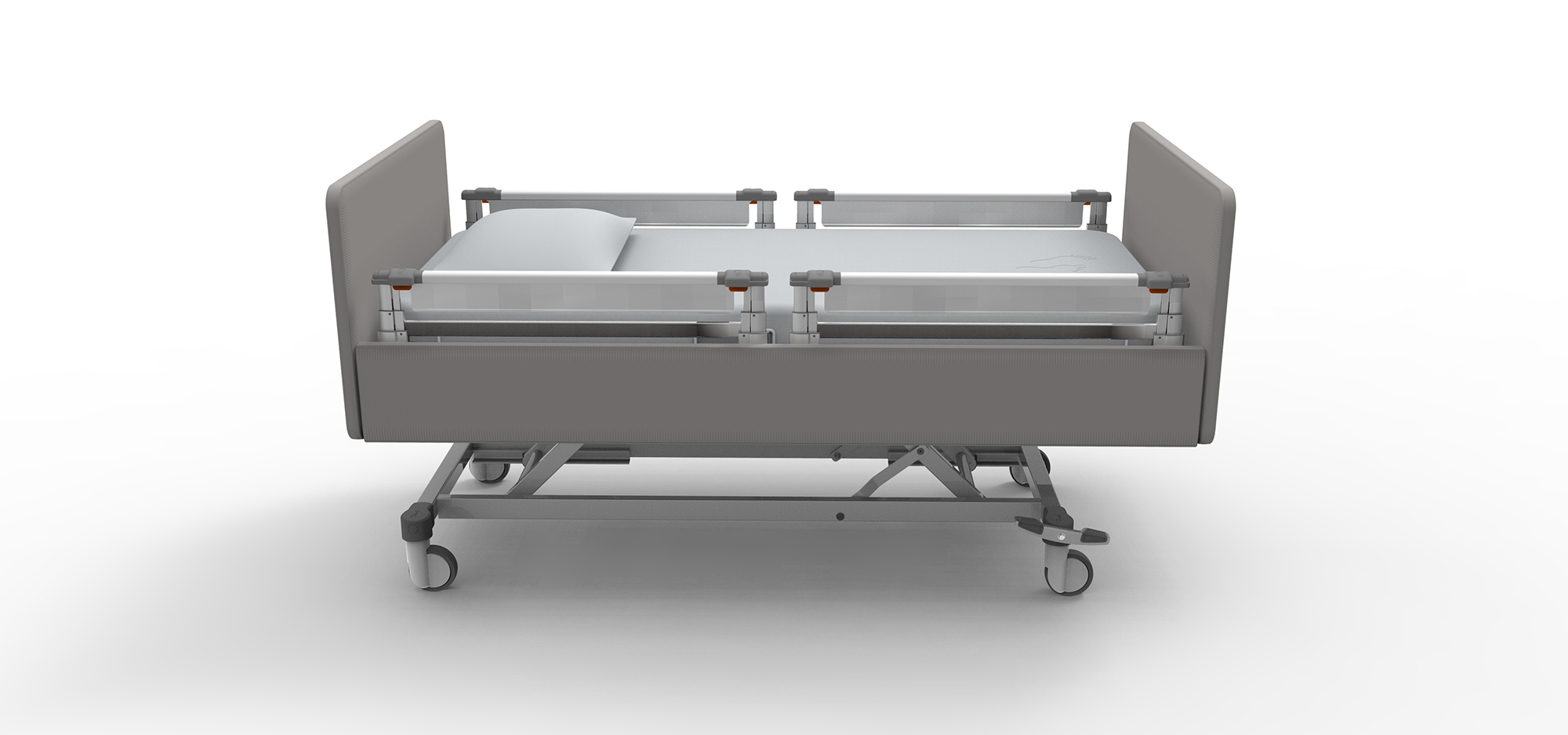

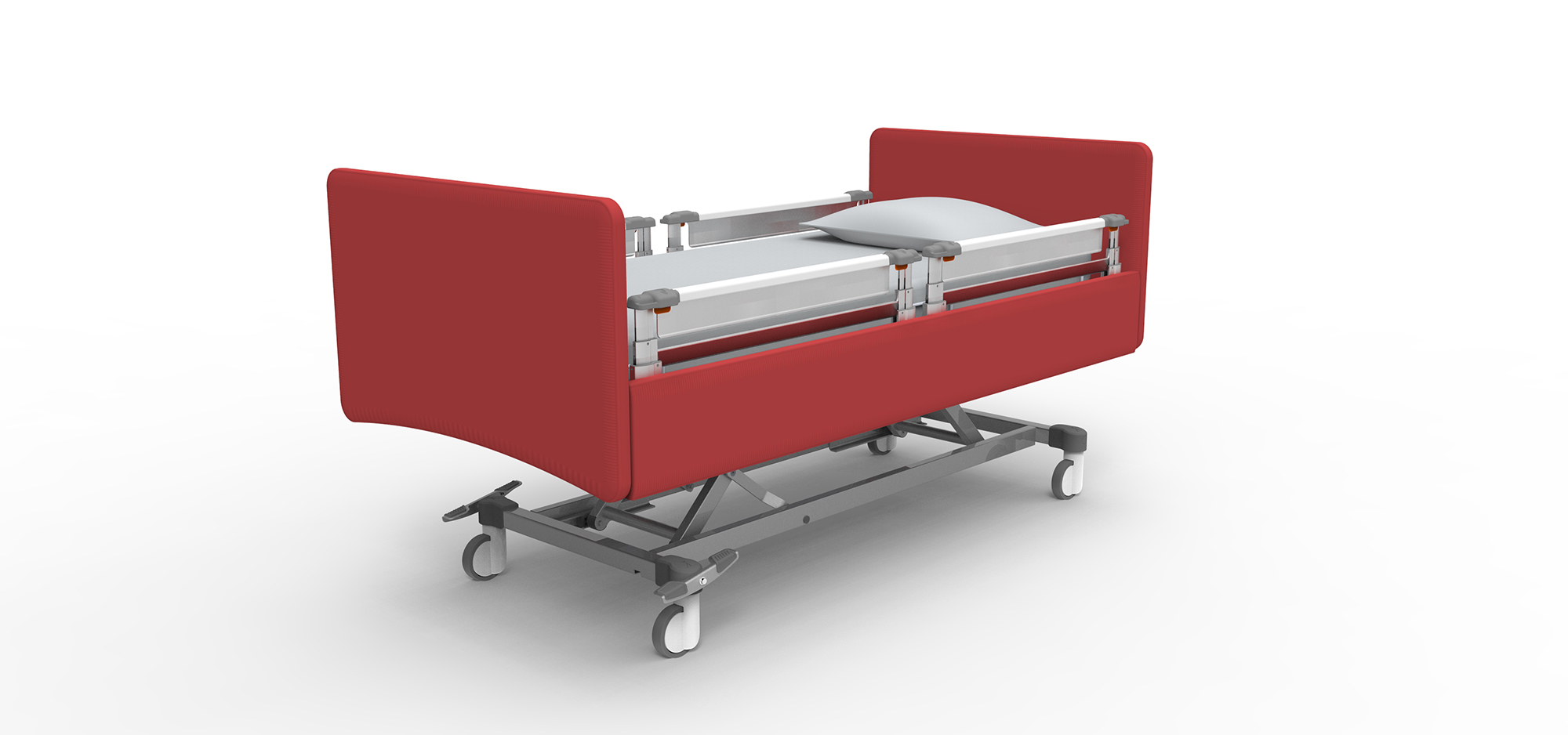

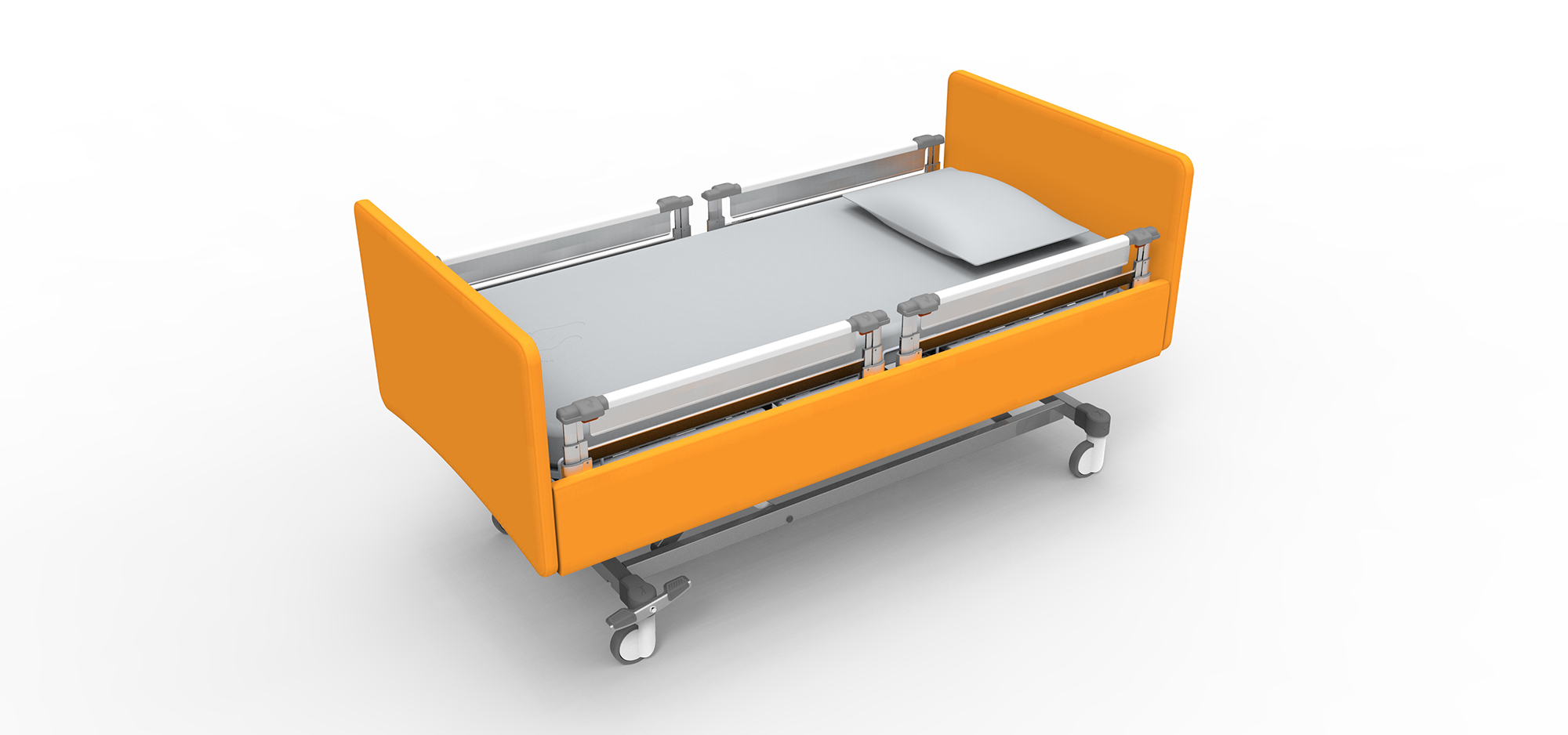

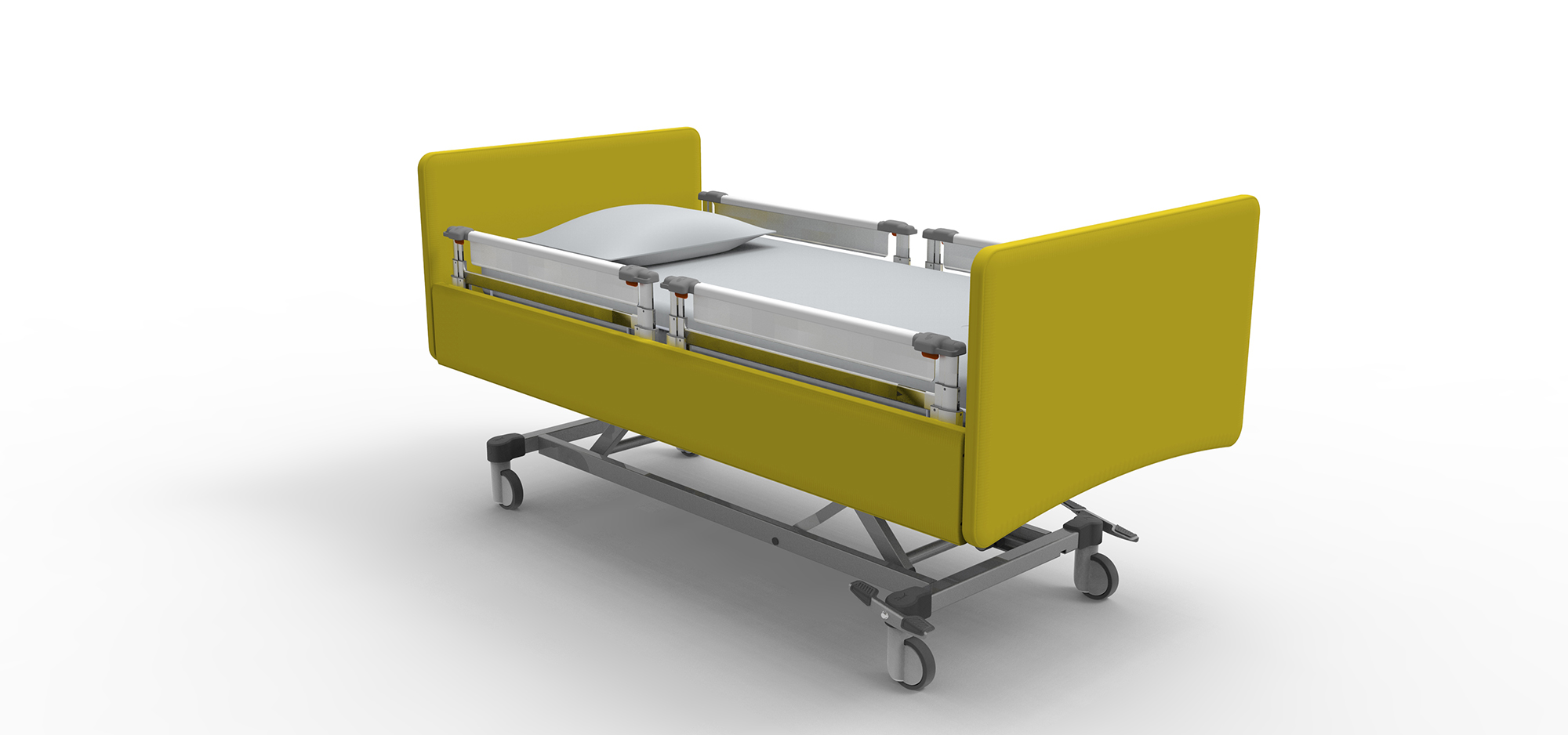

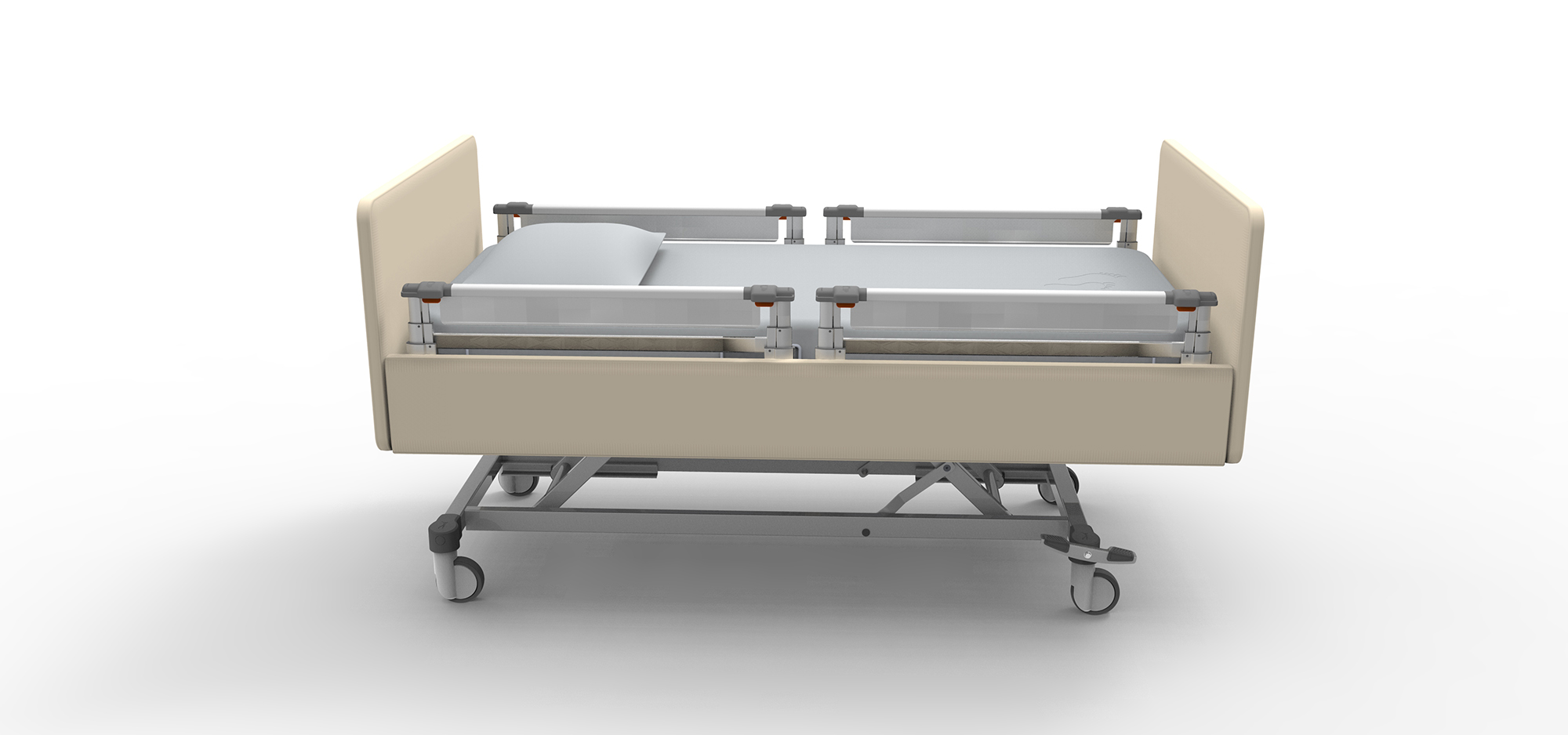

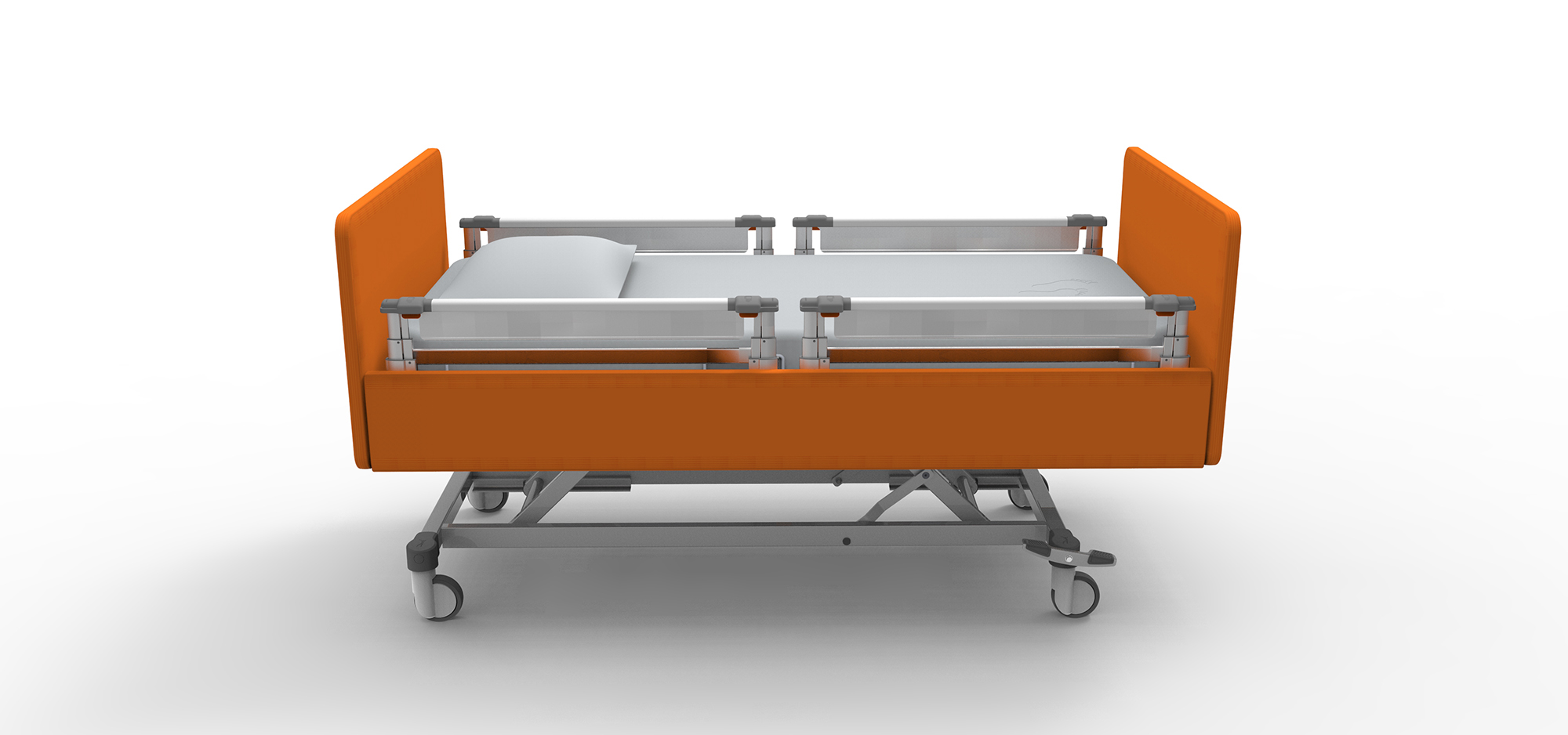

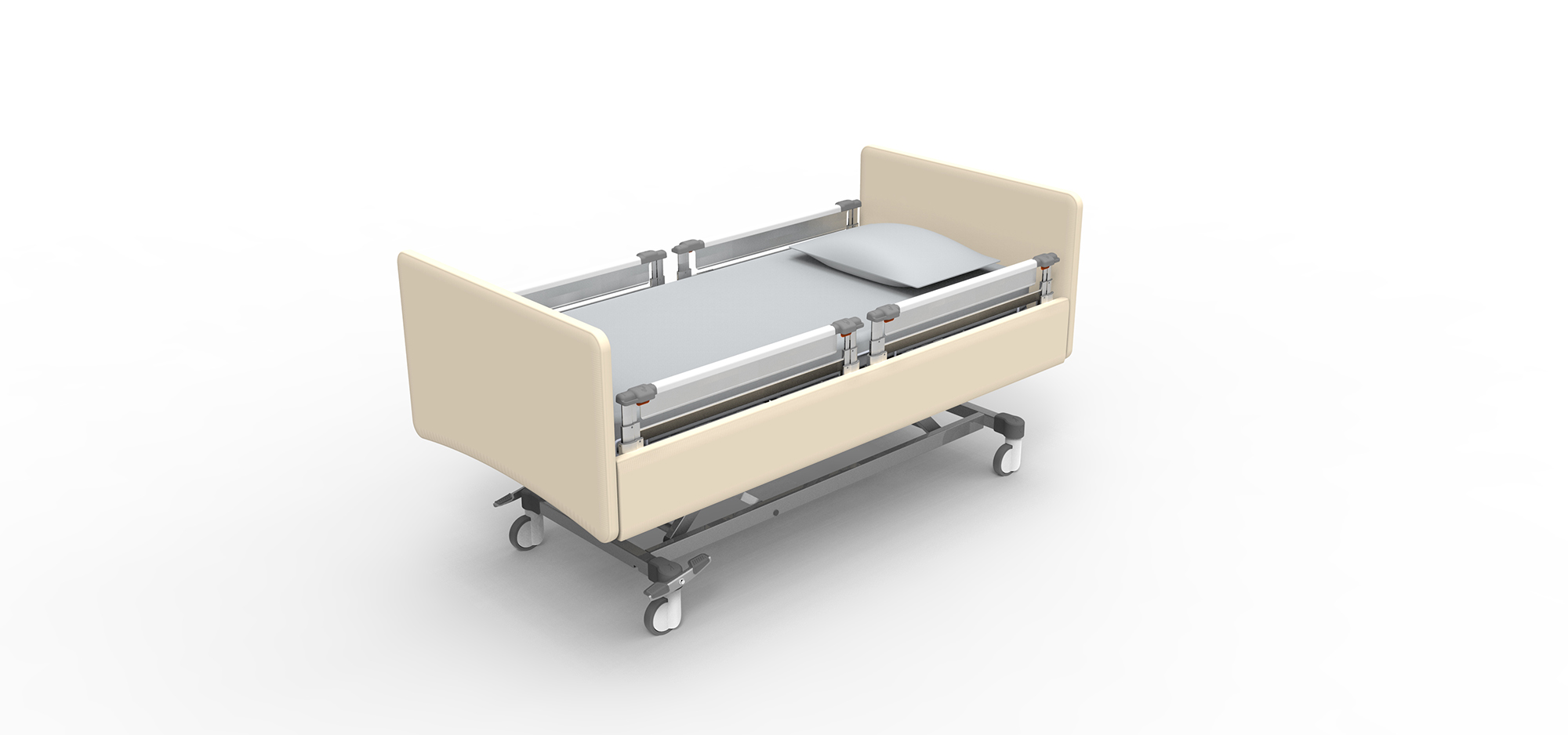

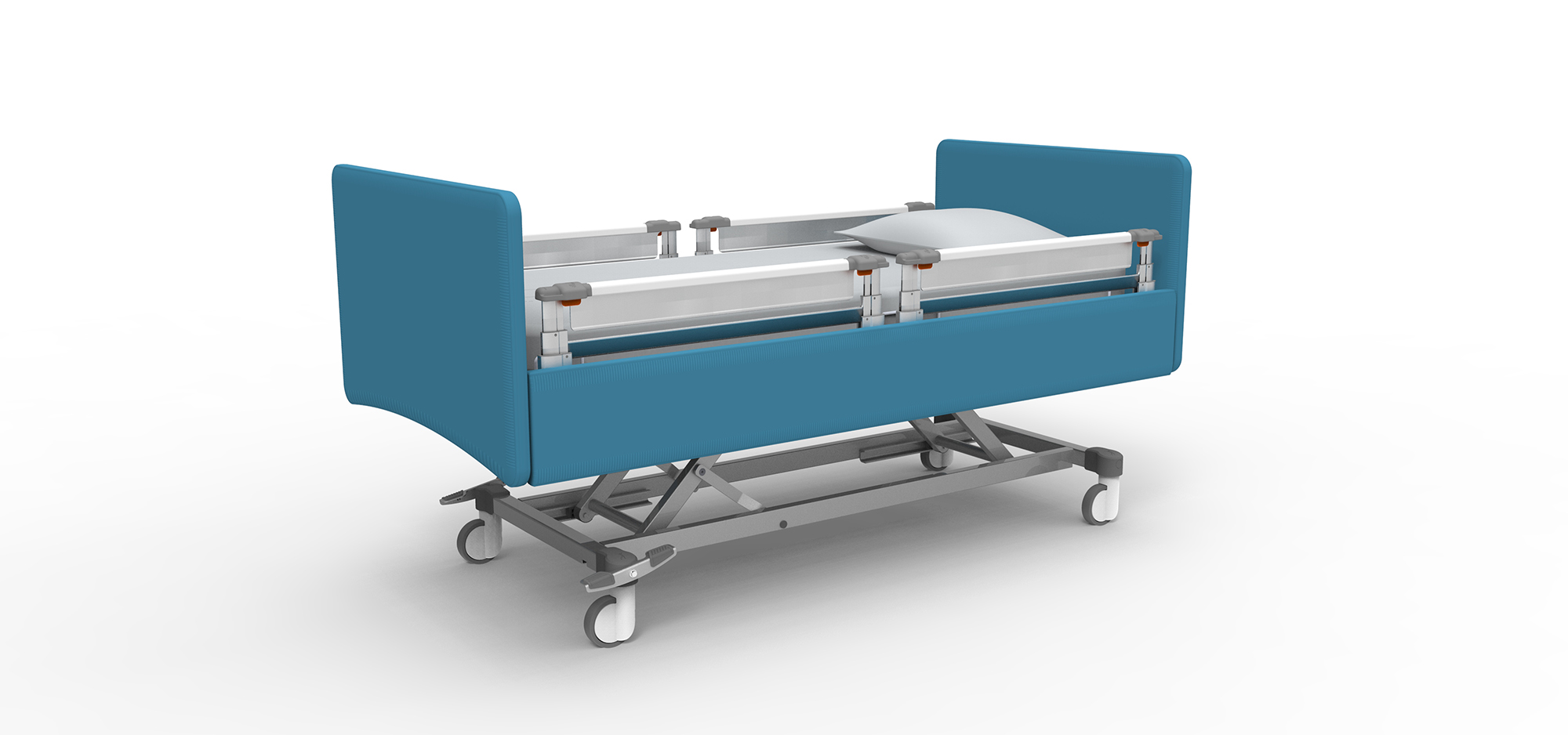

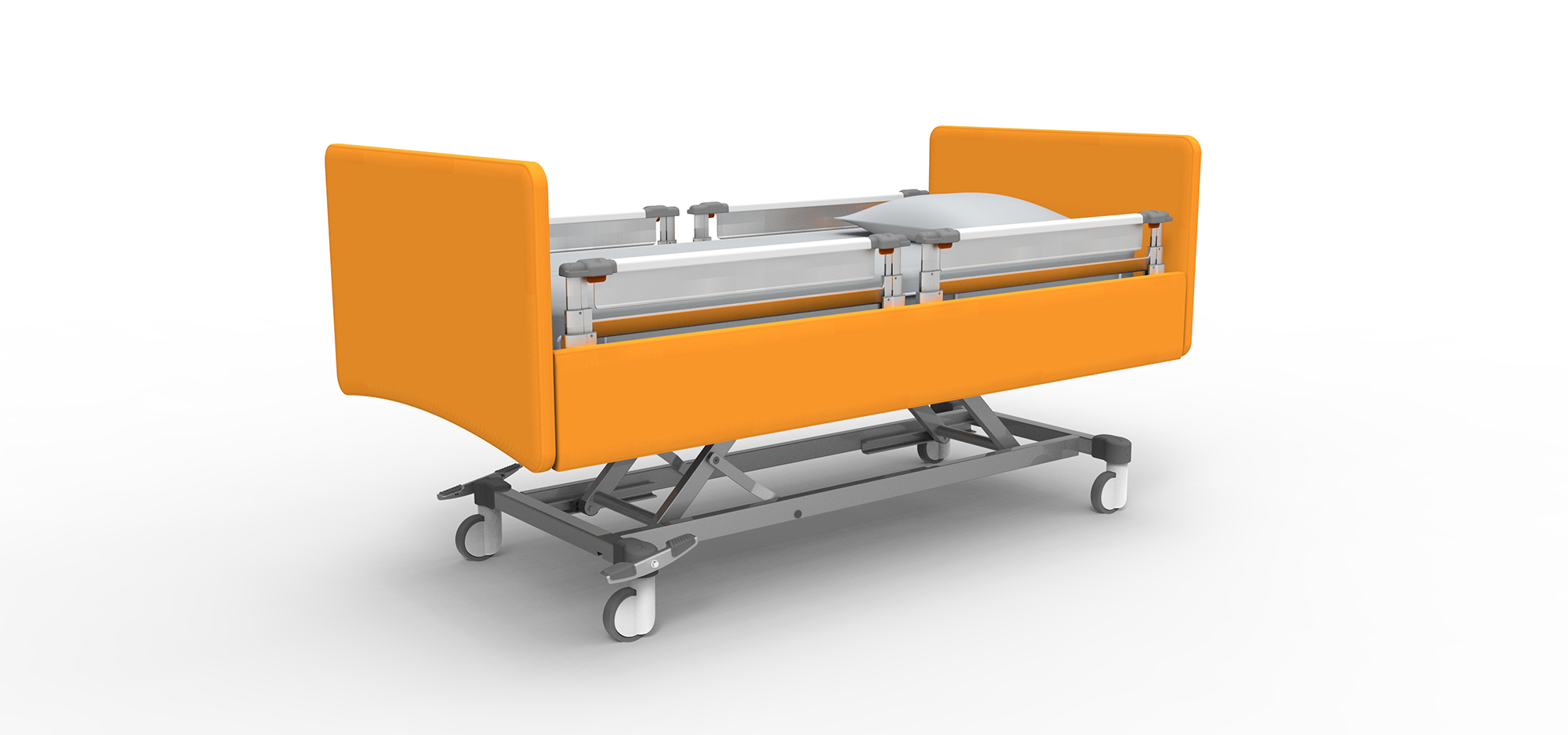

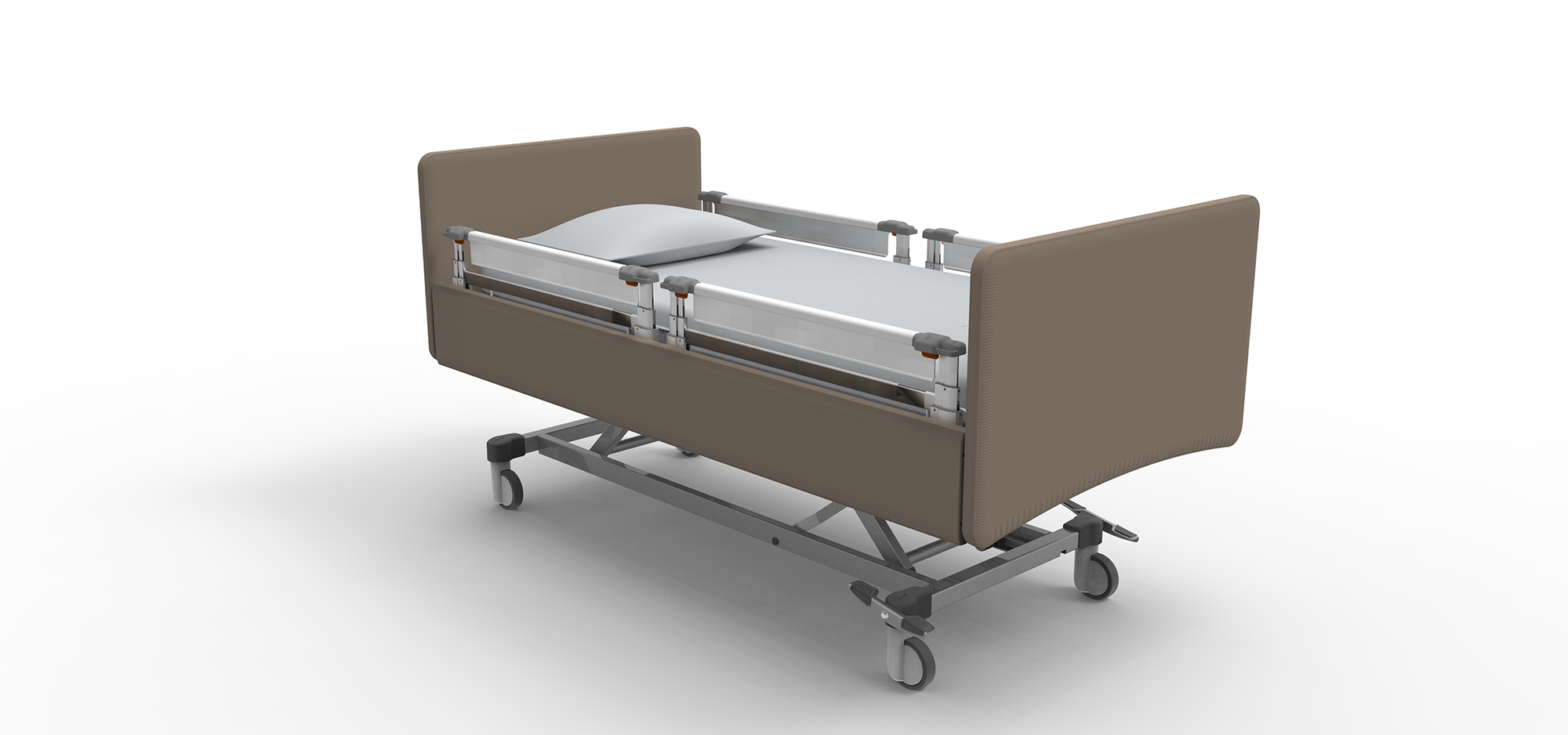

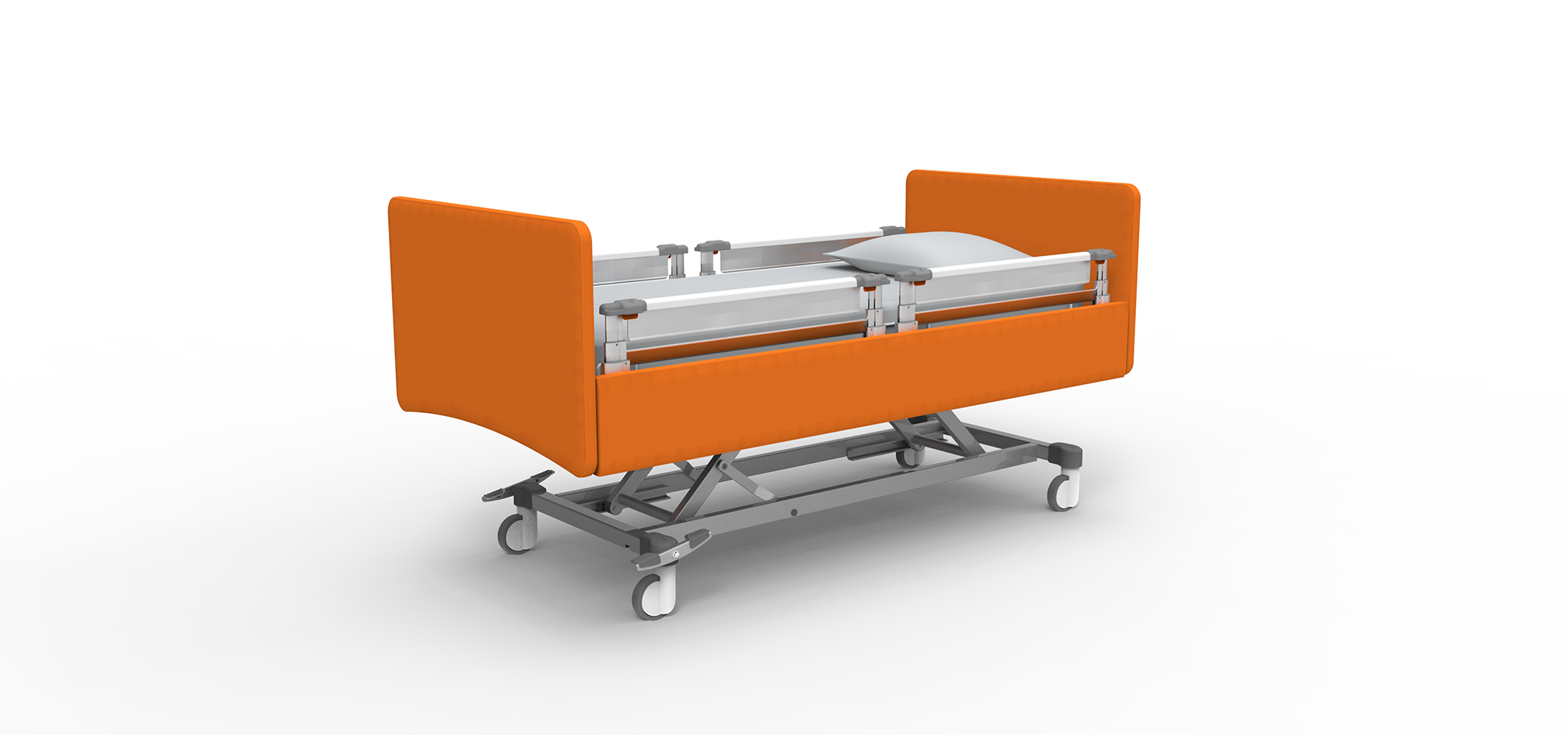

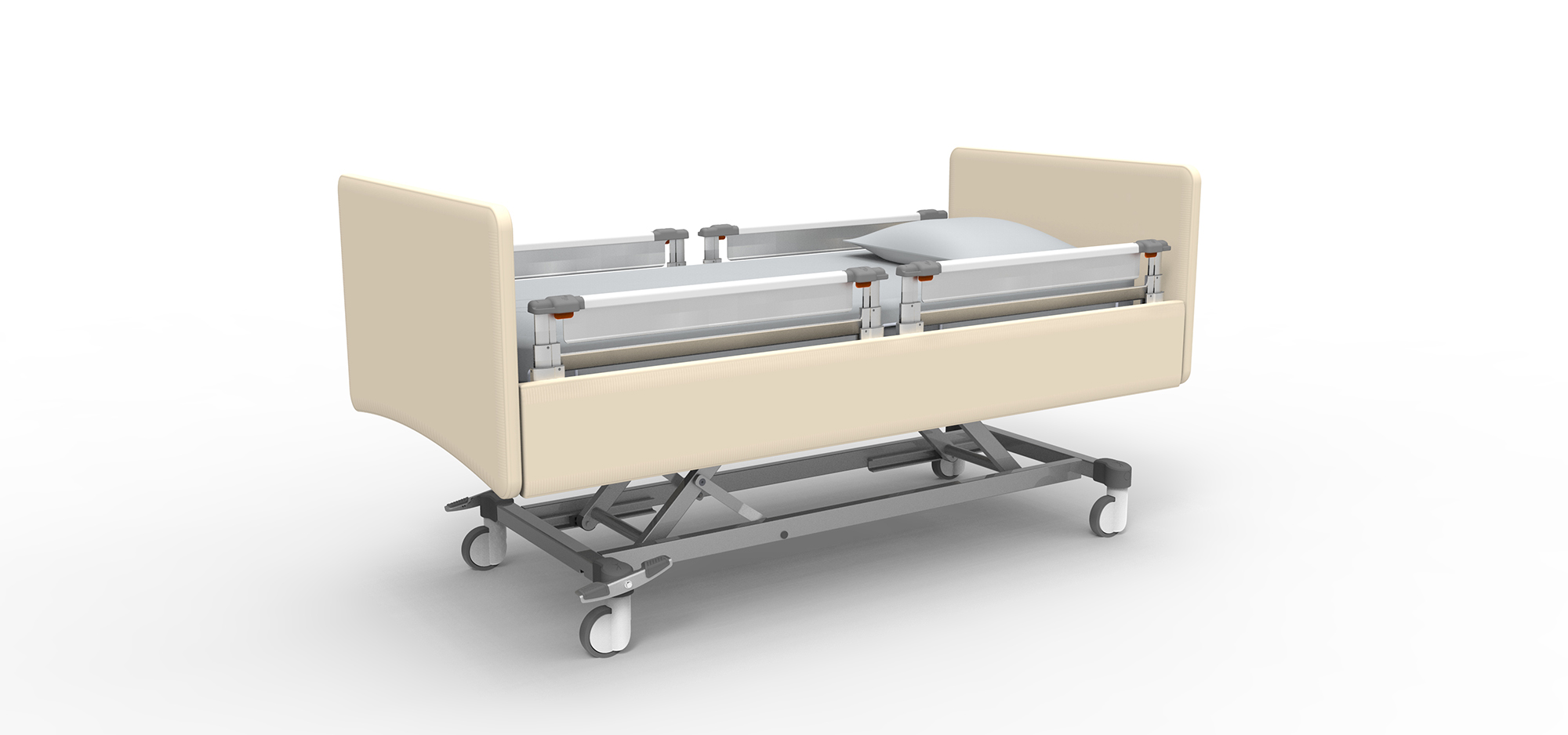

Nitrocare NITRO HB 7260F

Технические характеристики

1st motor brand, model, origin: Linak / 3500 n / dc / ipx4 / la27 or
Dewert / 4500 n / dc / ip66 / Megamat2
2nd motor brand, model, origin: Linak / 6000 n / dc / ipx4 / la27 or
Dewert / 4000 n / dc / ip66 / Megamat2
3rd motor brand, model, origin: Linak / 6000 n / dc / ipx4 / la27 or
Dewert / 6000 n / dc / ip66 / Megamat2
4th motor brand, model, origin: Linak / 6000 n / dc / ipx4 / la27 or
Dewert / 6000 n / dc / ip66 / Megamat2
Movements by motors: Назадrest, legrest, height, trendelenburg, reverse trendelenburg movements
Control panels: Patient remote controller. Optional: nurse control pannel which can lock patient remote controller usage.
Trendelenburg / reverse Trendelenburg: Trendelenburg / reverse trendelenburg by motors, max: 14°
Head & foot boards + side rails ( 4 pcs ) structure: Head pannel and foot pannel with 30 mm laminate. Side rails; metal, aluminium and compact material
Bed surfaces: Electrostatic powder cotated metal
Metal structure: Wall thickness for box profile : 1,2 – 2,0 mm. For pipe 1,2 – 2,0 mm
Coating type: Nano technology electrostatic powder coating and coating thickness min : 40 – 90 µm.
Electronic cpr: Optional: with nurse control panel
Manual cpr: Optional: manual cpr can be controlled with the help of handles on the right and left sides.
Castors: Diameter 125 mm / tente, haion or rhombus brand. 4 pieces.
Locking of castors: Linear brake and directional lock for linear direction
Auto regression: Yes. 100 mm
Infusion pole: Optional: stainless steel, wall thickness 1,5 mm + pipe outside diameter 25 mm, inner diameter 19 mm, with 4 plastic hooks
Drainage hooks & urine bag holder: 2 pcs
Manual knee mechanism: Knee mechanism with ratchet mechanism
Bottom frame size: 40 x 60 x 2 mm / 50 x 30 x 3 mm
Upper frame size: 50 x 30 x 2 mm / 20 x 20 x 2 mm
Overall bed dimension / width: 1072 mm
Overall bed dimension / length: 2090 mm
Overall bed dimension / hight min: 370 mm
Overall bed dimension / hight max: 770 mm
Max.safe capacity: 250 kg
