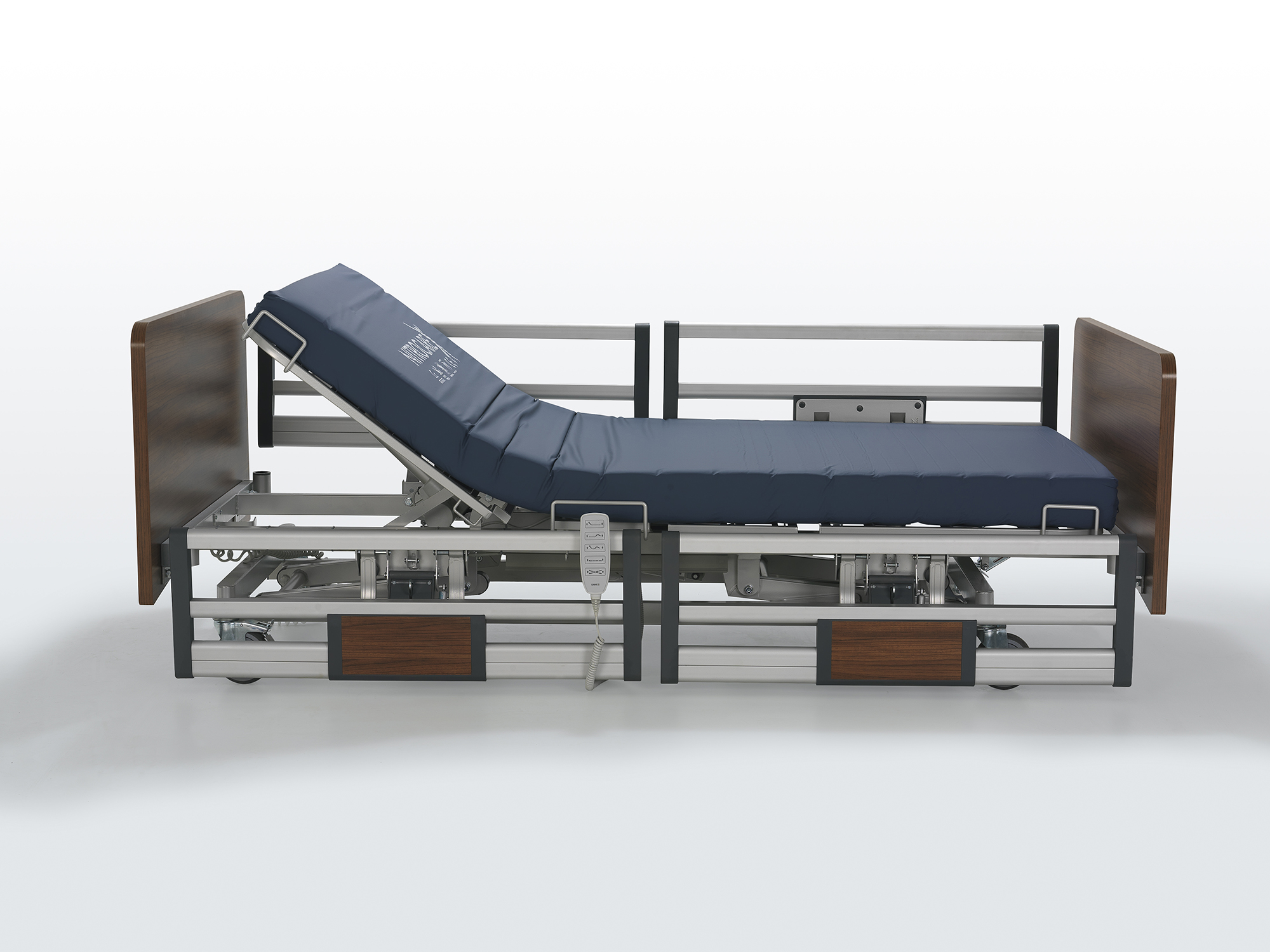

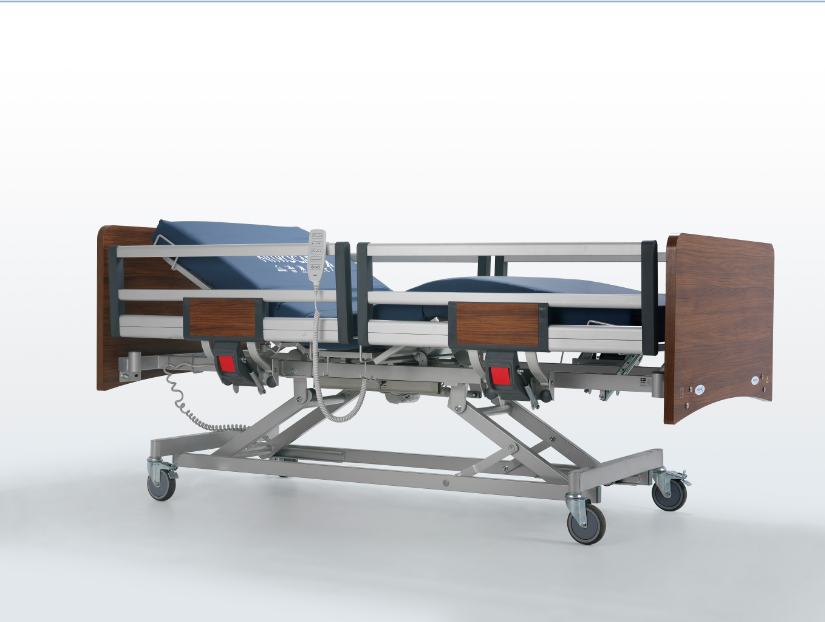

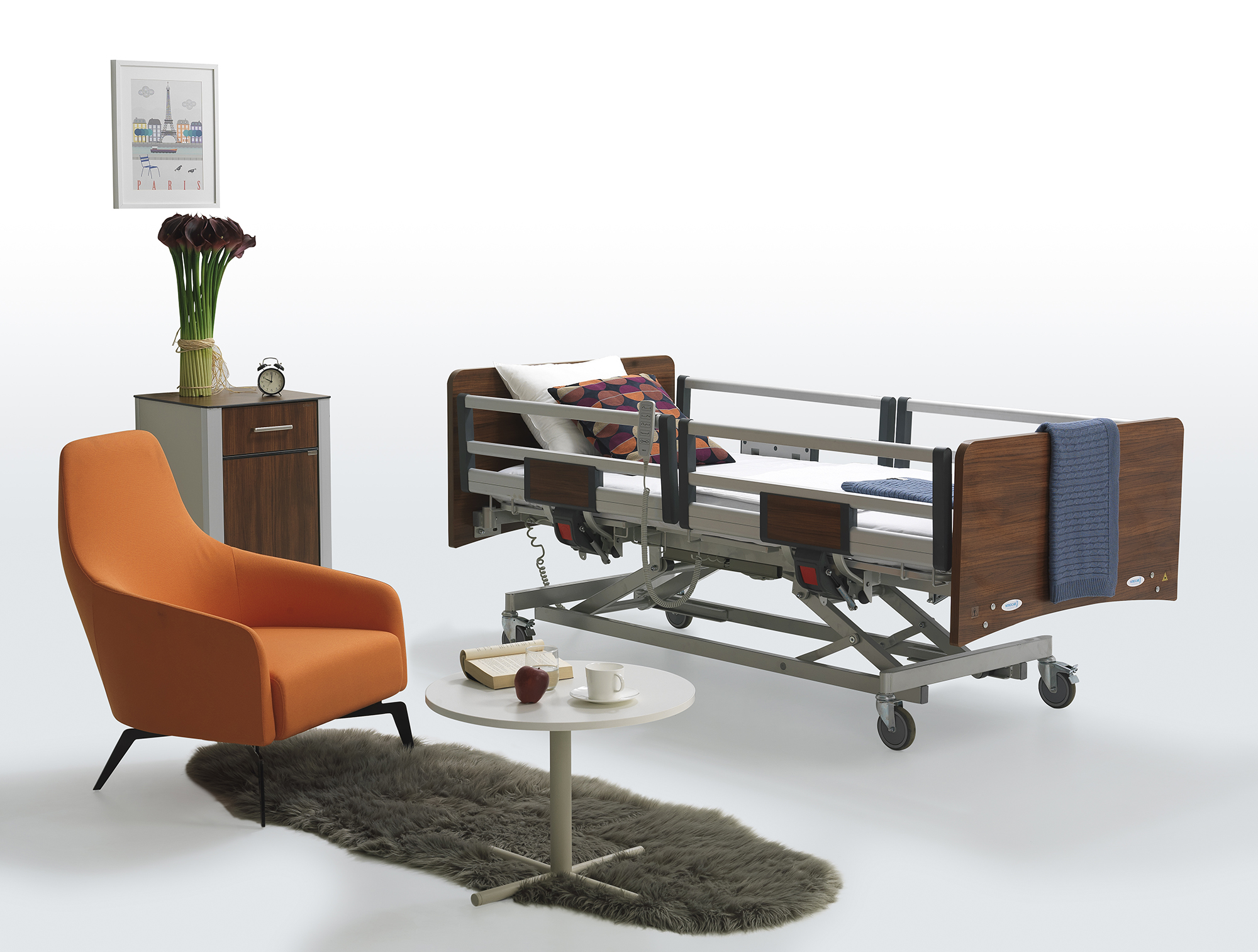

Nitrocare NITRO HB 7240

Технические характеристики

1st motor brand, model, origin: Linak / 3500 n / dc / ipx4 / la27 or
Dewert / 2000 n / dc / ip66 / megamat2
2nd motor brand, model, origin: Linak / 3500 n / dc / ipx4 / la27 or
Dewert / 4000 n / dc / ip66 / megamat2
3rd motor brand, model, origin: Linak / 6000 n / dc / ipx4 / la27 or
Dewert / 6000 n / dc / ip66 / megamat2
4th motor brand, model, origin: Linak / 6000 n / dc / ipx4 / la27 or
Dewert / 6000 n / dc / ip66 / megamat2
General sizes (bumper to bumper): Width : 1020 mm, lenght : 2090 mm

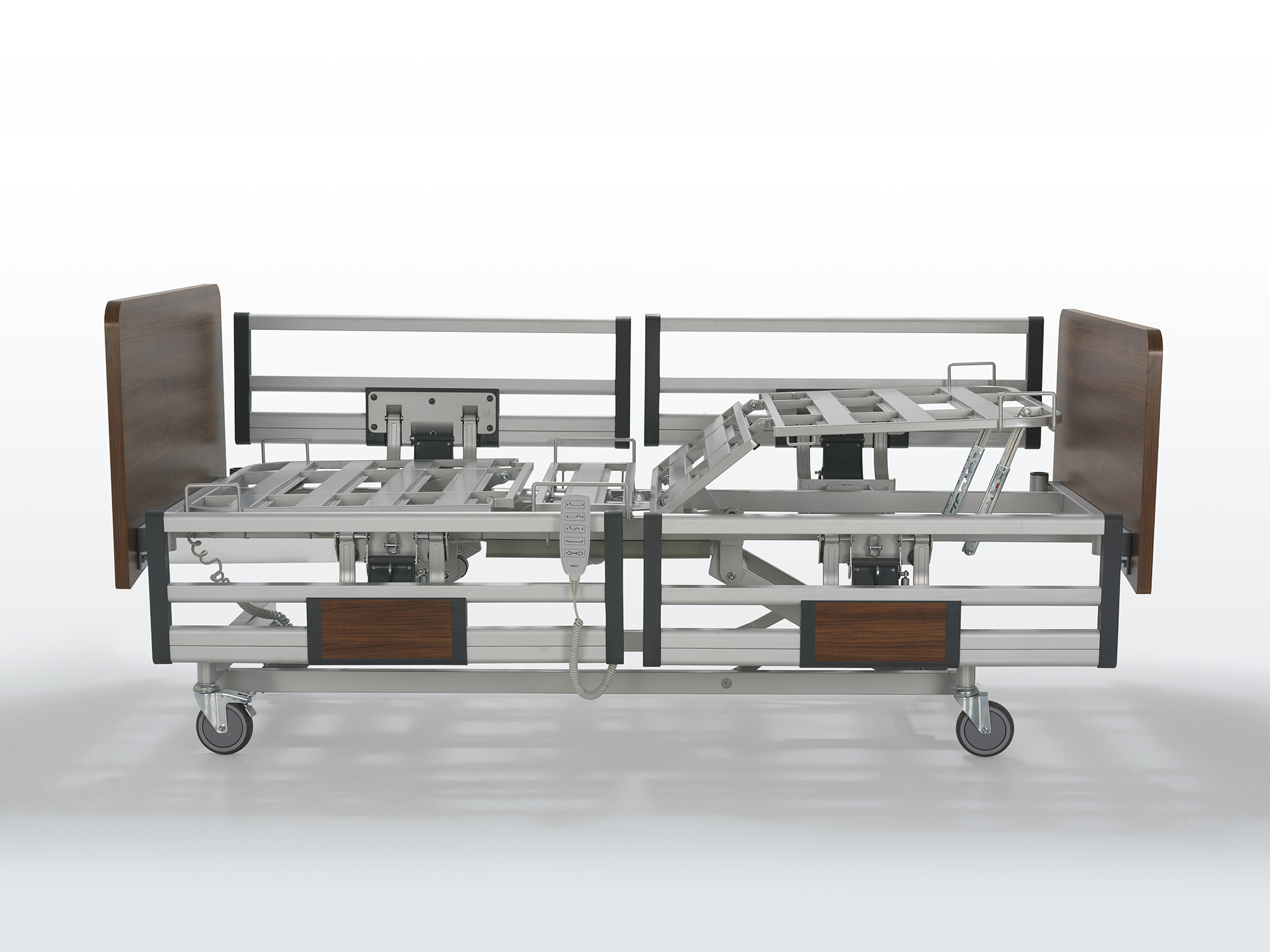

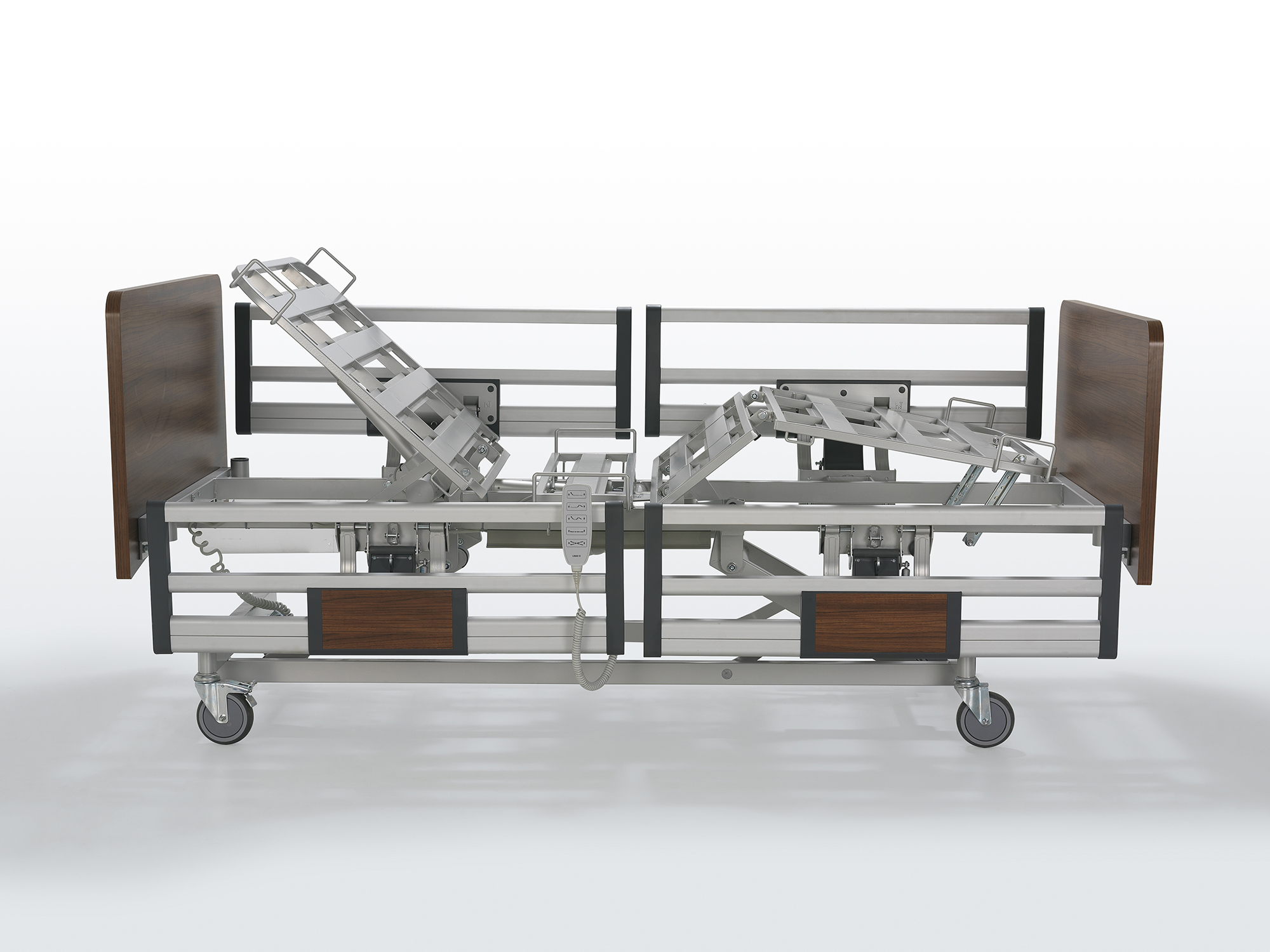

Movements by motors: Назадrest, legrest, height, trendelenburg, reverse trendelenburg movements
Control panels: Patient remote controller

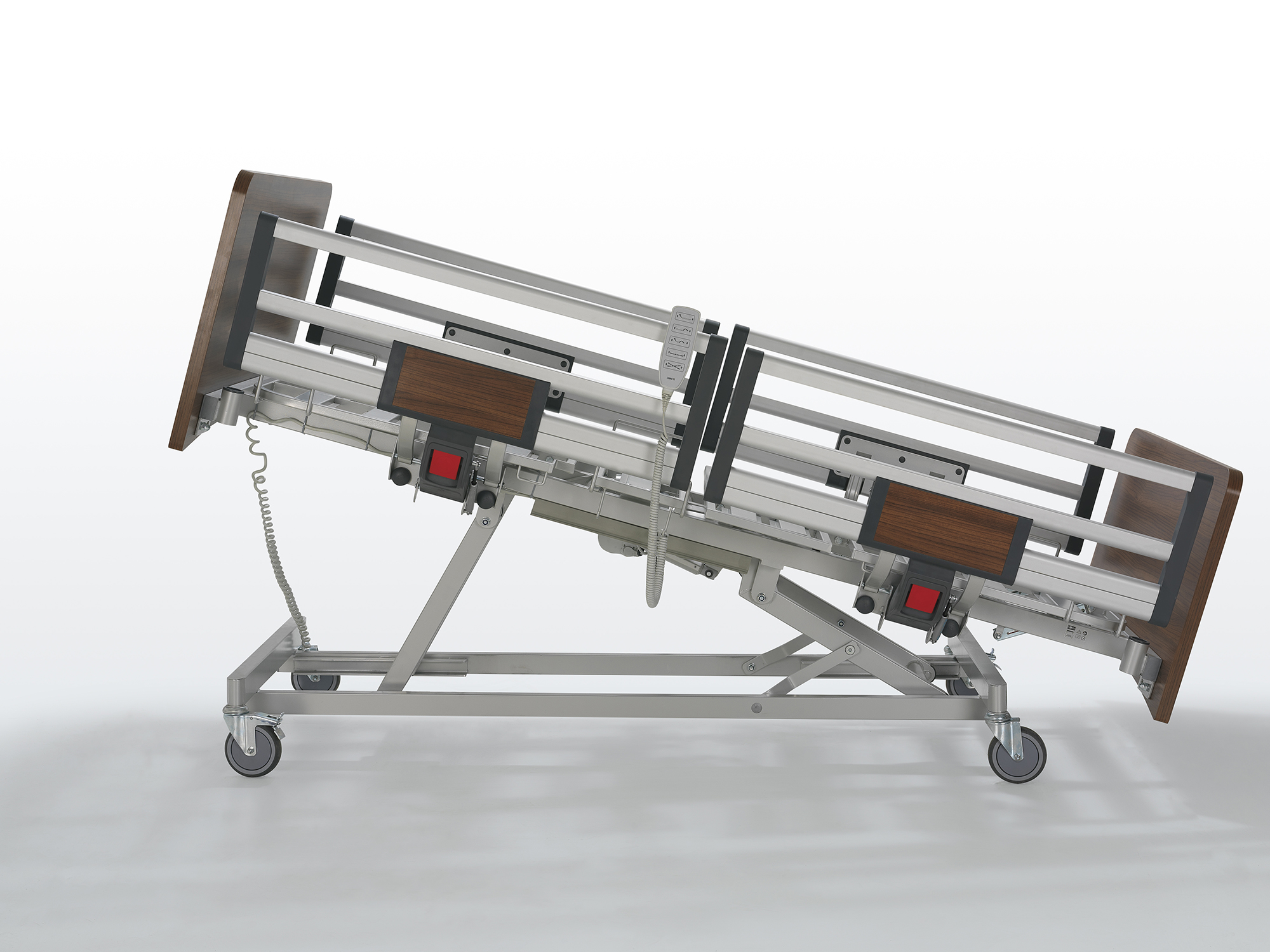

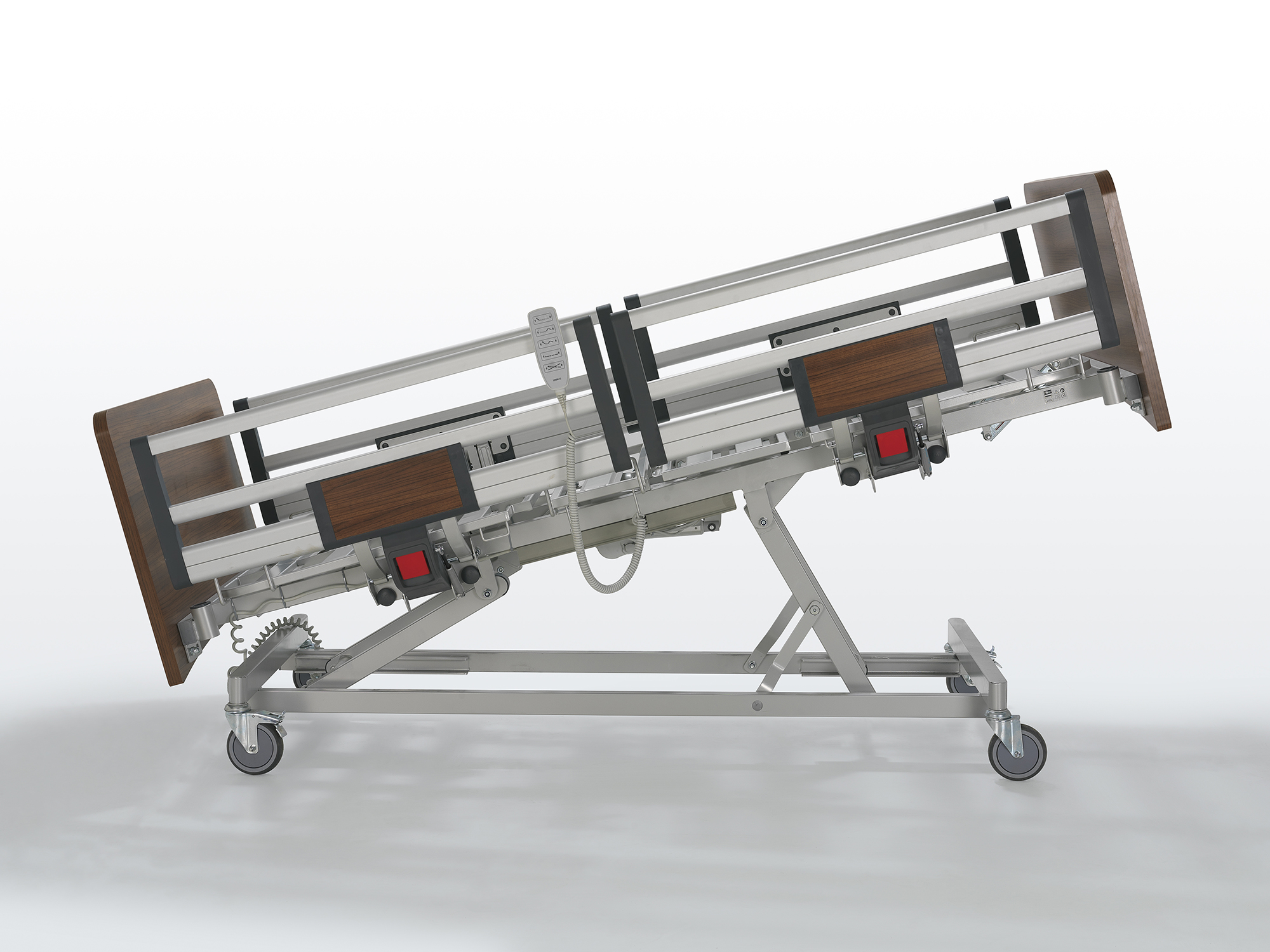

Trendelenburg / reverse Trendelenburg: Trendelenburg / reverse trendelenburg by motors min : 0 – 14 degree
Headings and side rails structure: Head pannel and foot pannel with 30 mm laminate. Side rails; metal, aluminium and compact material
Metal structure: Thickness for box profile : 1,2 – 2,00 mm. For pipe 1,2 – 2,00 mm
Painting: Nano technology, after coating antibacterial electrostatic powder paint with 180 degree fine. Thickness between 40-90 micron.
Electronic cpr: Optional with nurse control panel
Manual cpr: Yes, with handles on both sides of back rest

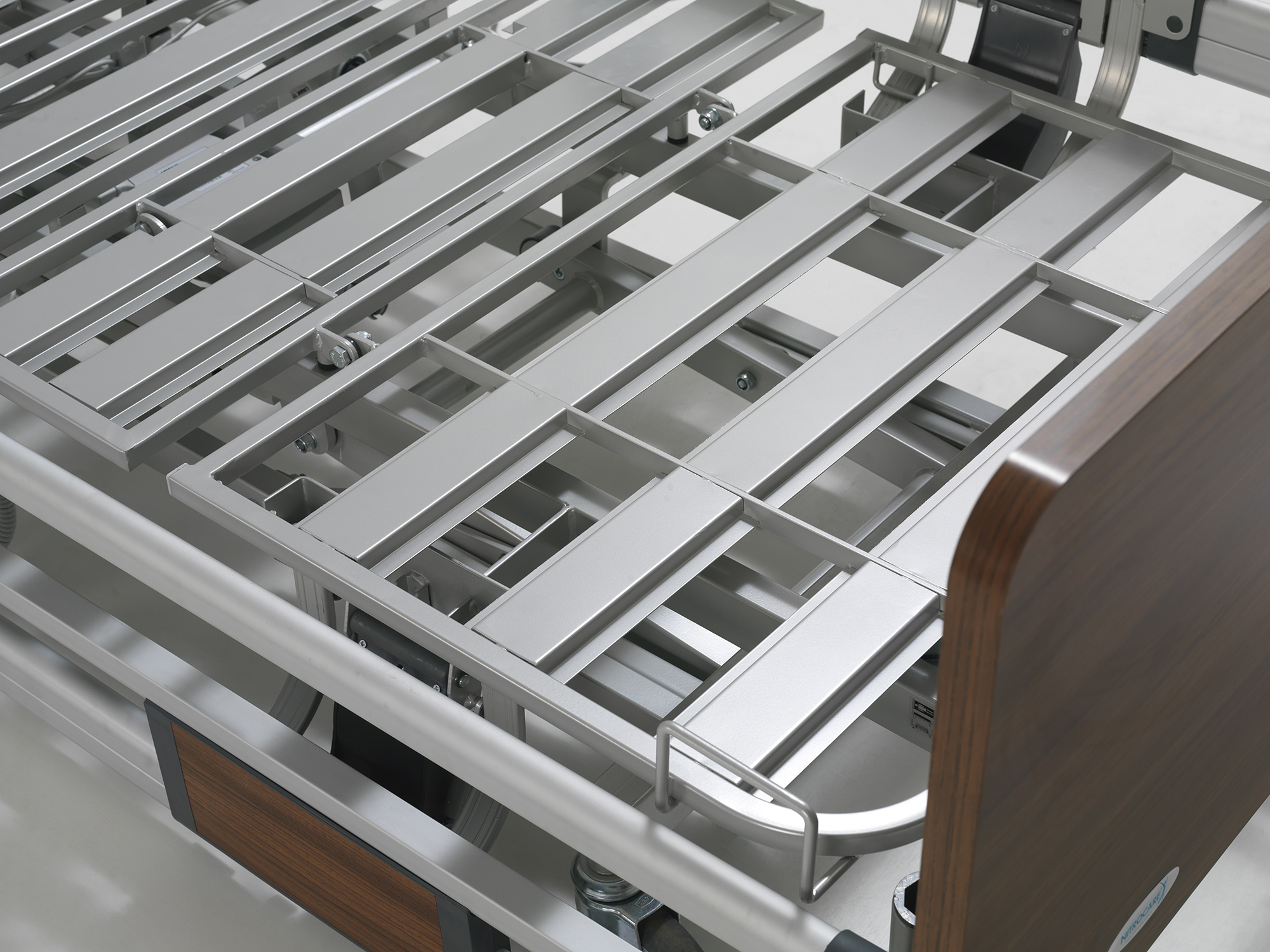

Bed surfaces: Metal
Castors: Diameter 125 mm castors

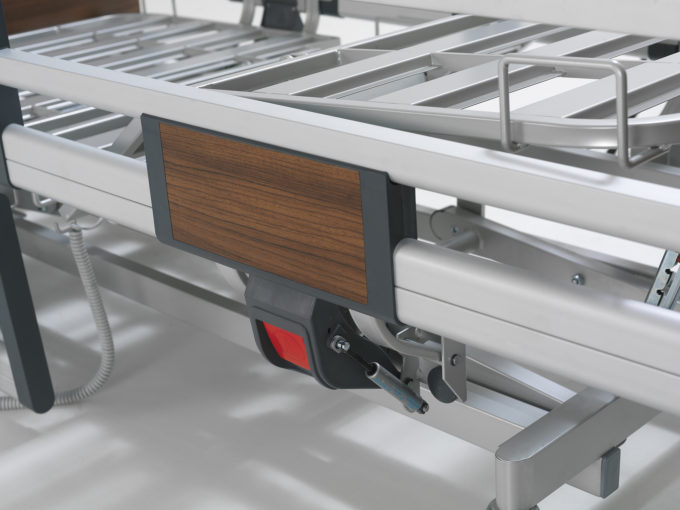

Locking of castors: Linear locking system with 2 castors lock, 2 castors without lock
Auto regression: Yes. 100 mm
Battery: Options

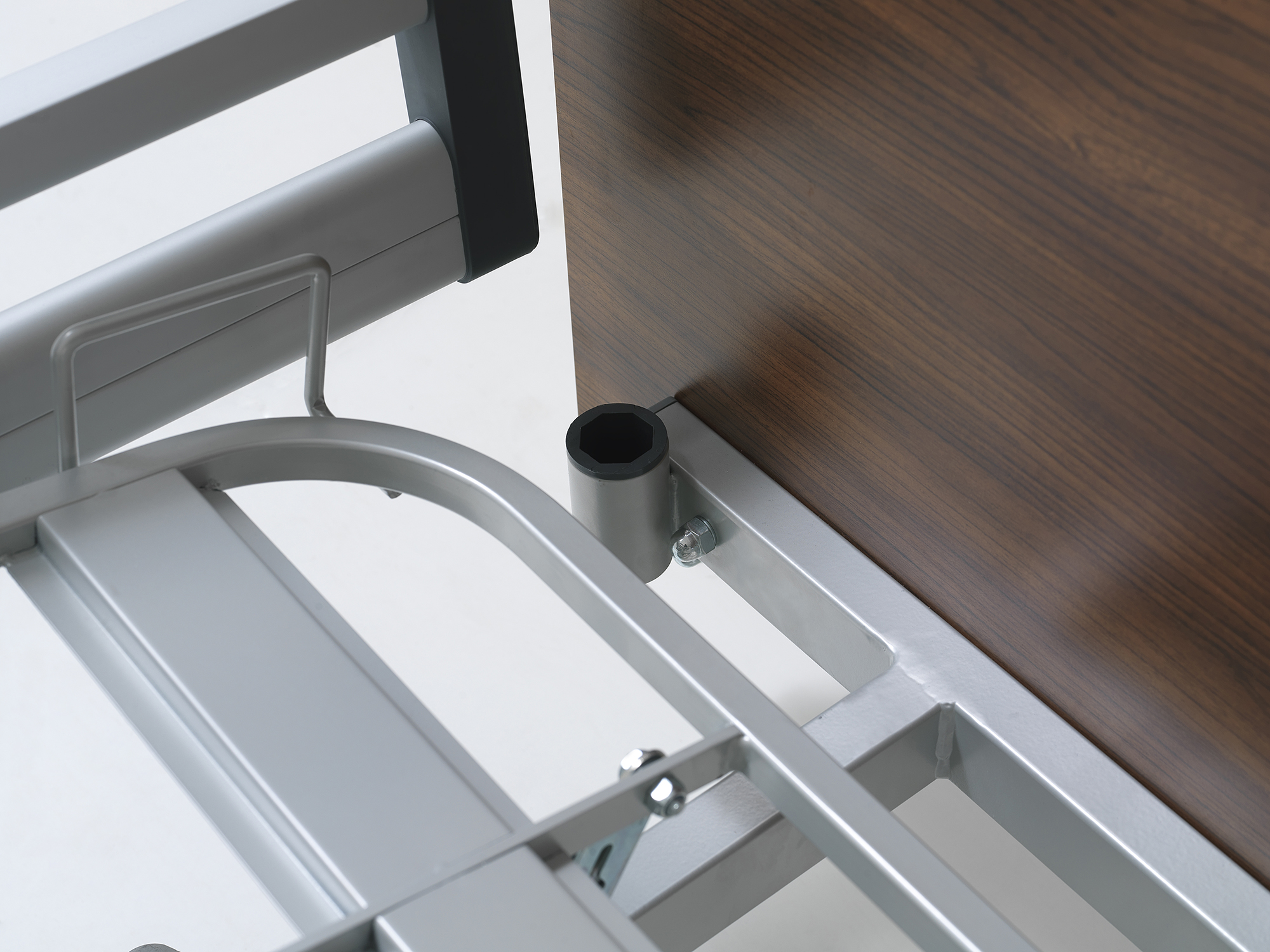

IV Pole: Yes, chromed metal tick.1,2 mm, outside diameter 25 mm, inner diameter 19 mm and 4 hooks
Drainage hooks: Yes
Manual knee mechanism: Yes, manual knee mechanism with 3 gradual position
Bottom frame size: 40 x 60 x 2 mm / 50 x 30 x 3 mm
Upper frame size: 50 x 30 x 2 mm / 20 x 20 x 2 mm
Overall bed dimension / width: 1290 mm
Overall bed dimension / length: 2090 mm
Overall bed dimension / hight min: 370 mm
Overall bed dimension / hight max: 770 mm
Max.safe capacity: 250 kg
