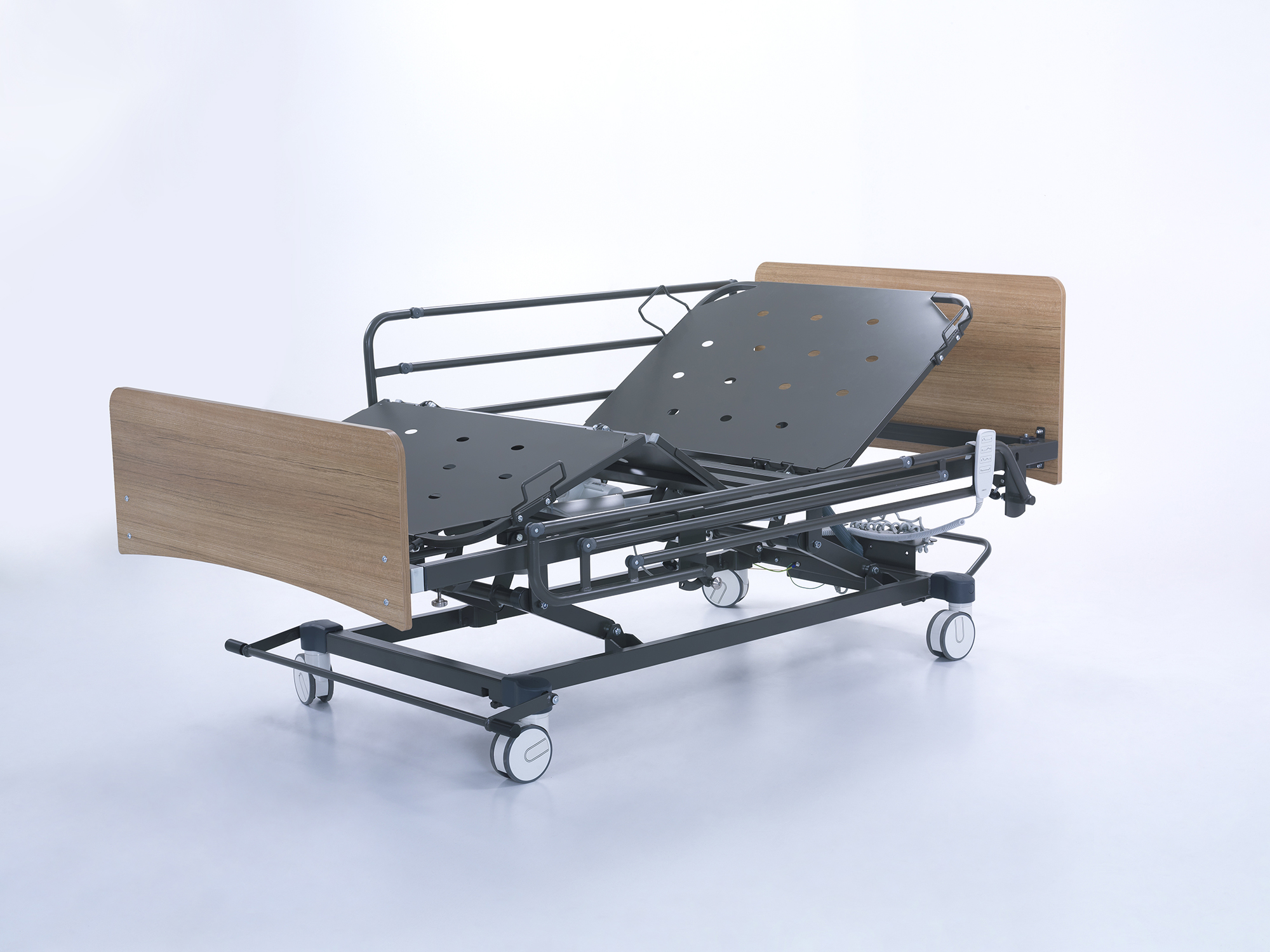

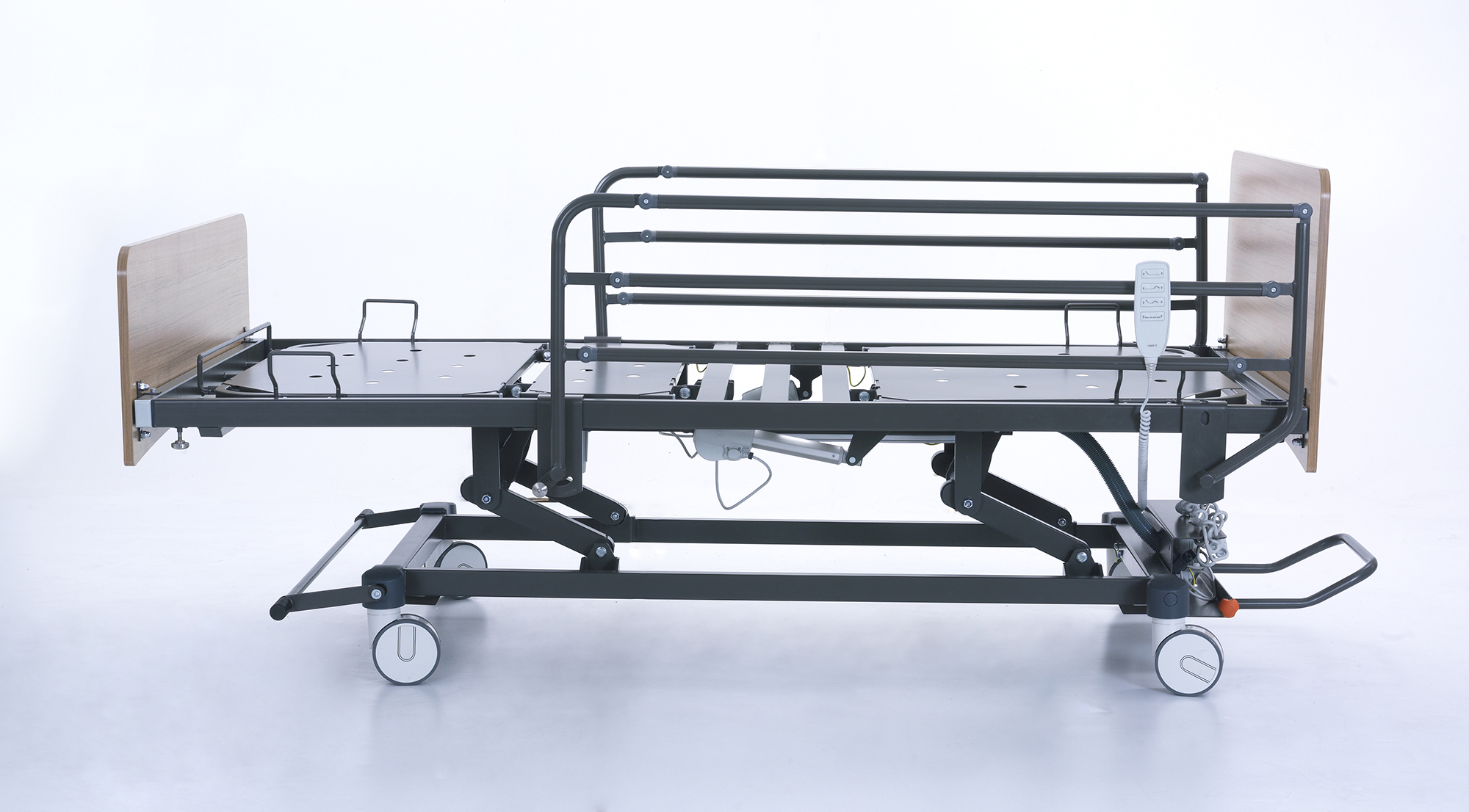

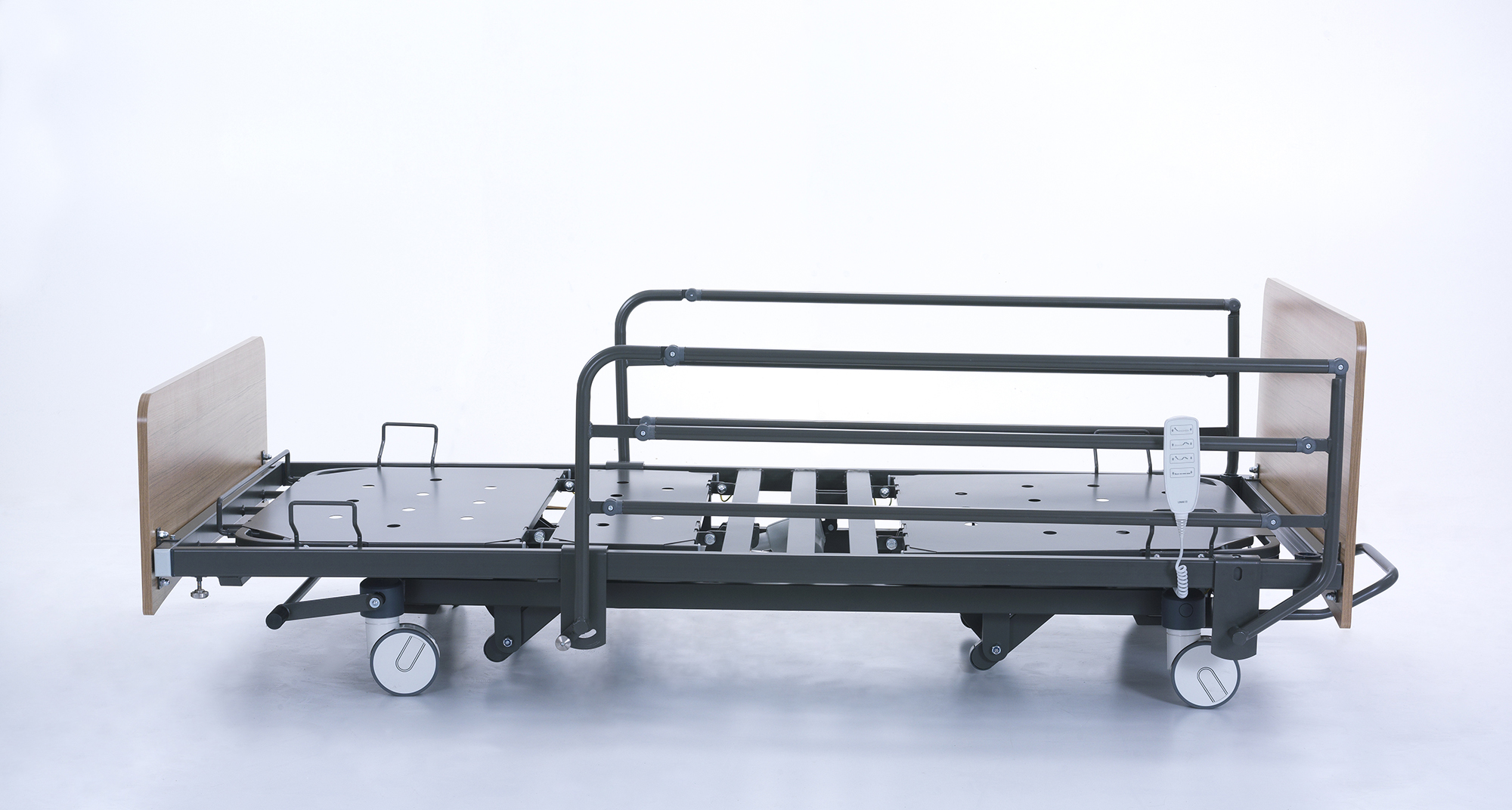

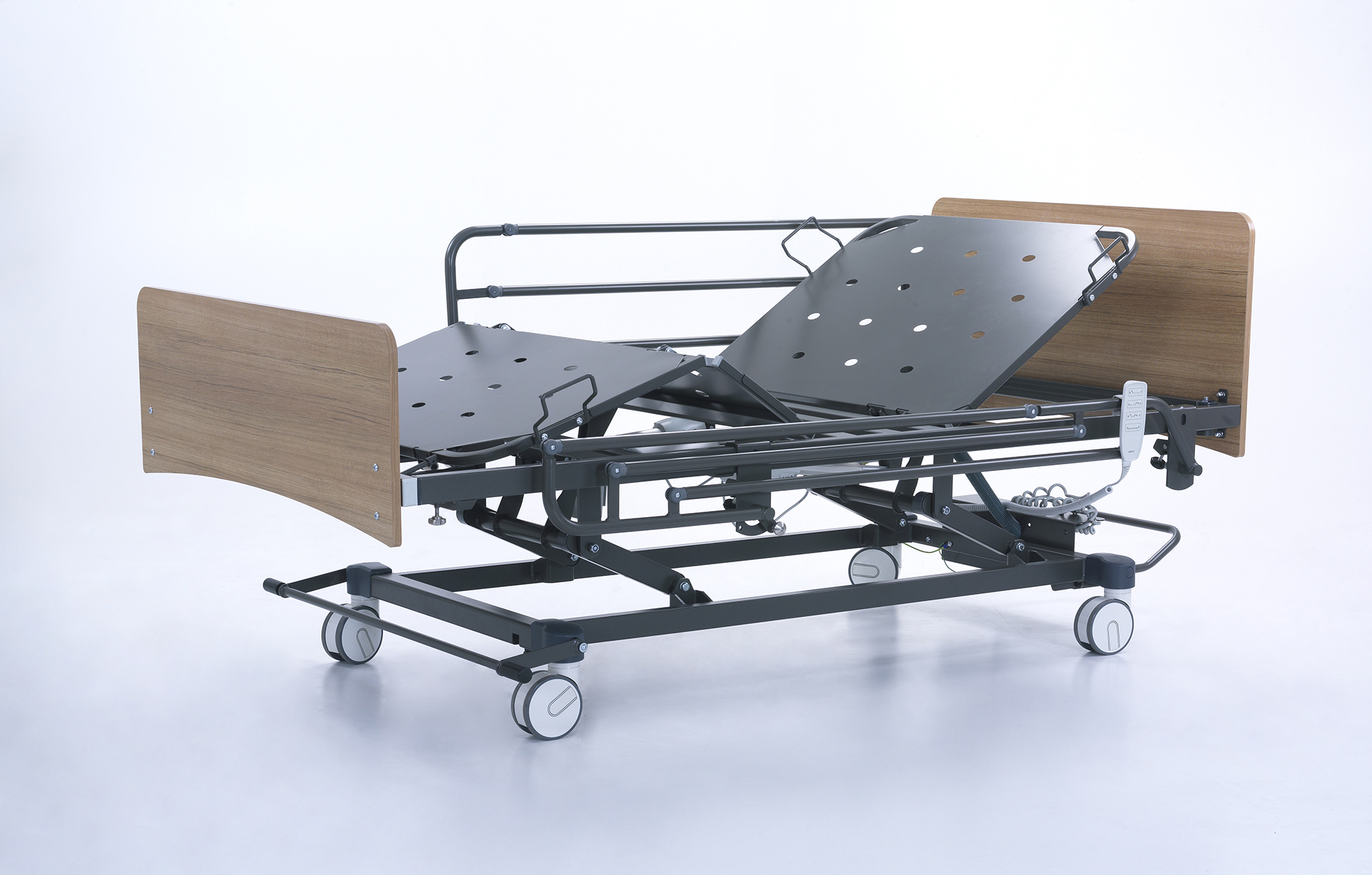

Nitrocare NITRO HB 7250S

Технические характеристики

1st motor brand, model, origin: Linak / la27 / 3500 n / ipx4 / dc
2nd motor brand, model, origin: Linak / la27 / 2500 n / ipx4 / dc
3rd motor brand, model, origin: Linak / la27 / 6000 n / ipx4 / dc

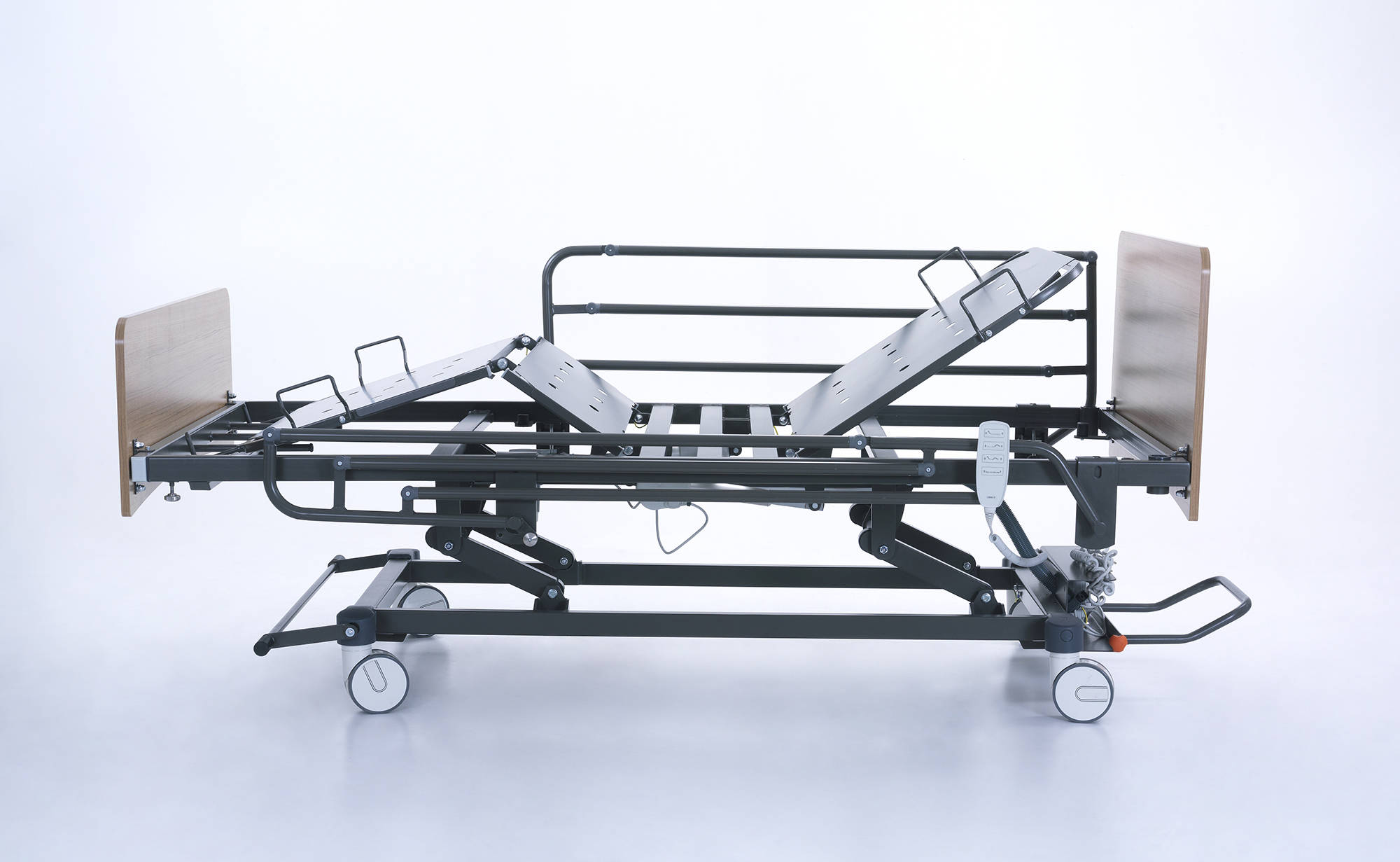

Movements by motors: Назадrest, legrest, height adjustment

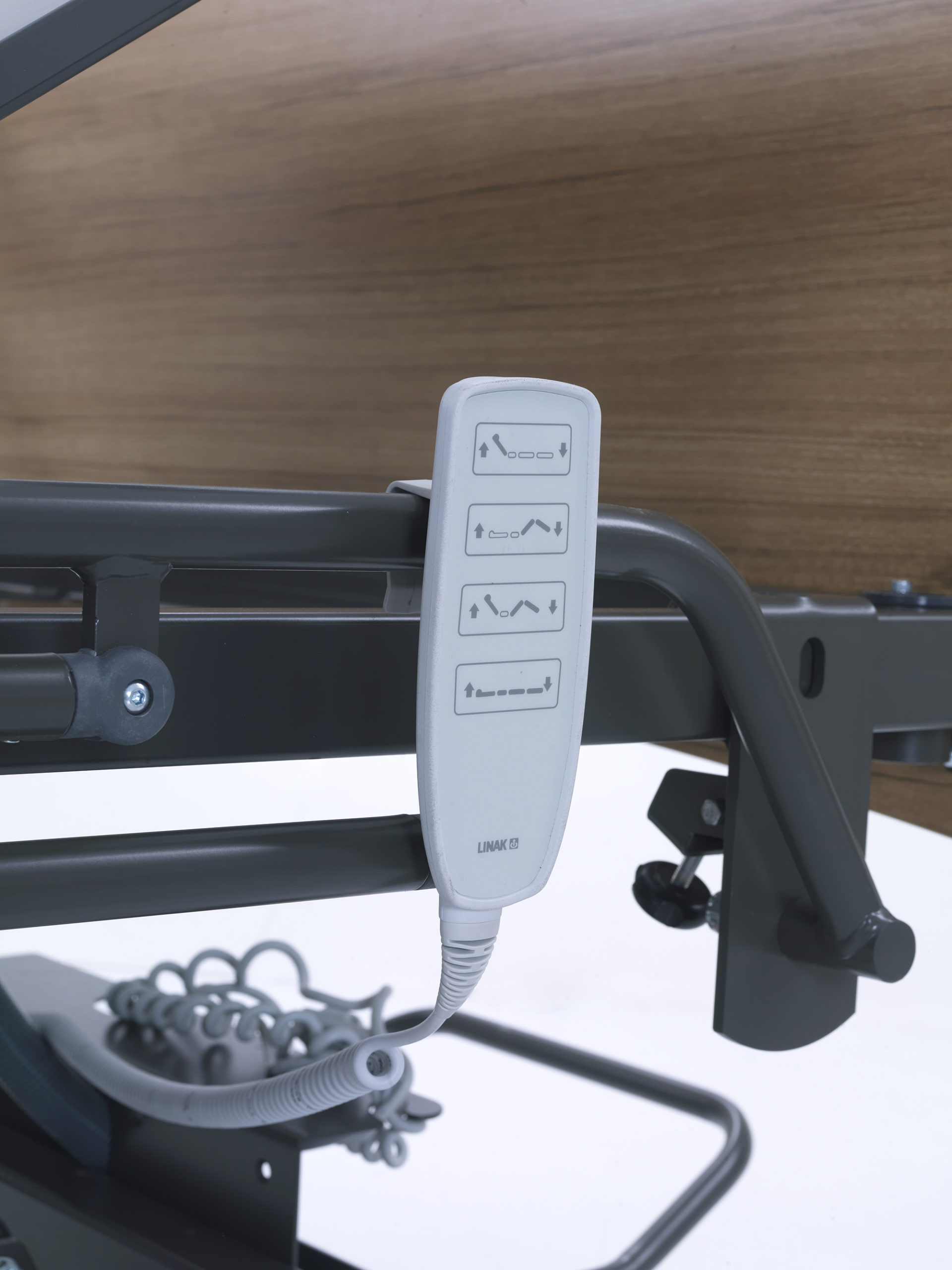

Control panels: Patient remote controller

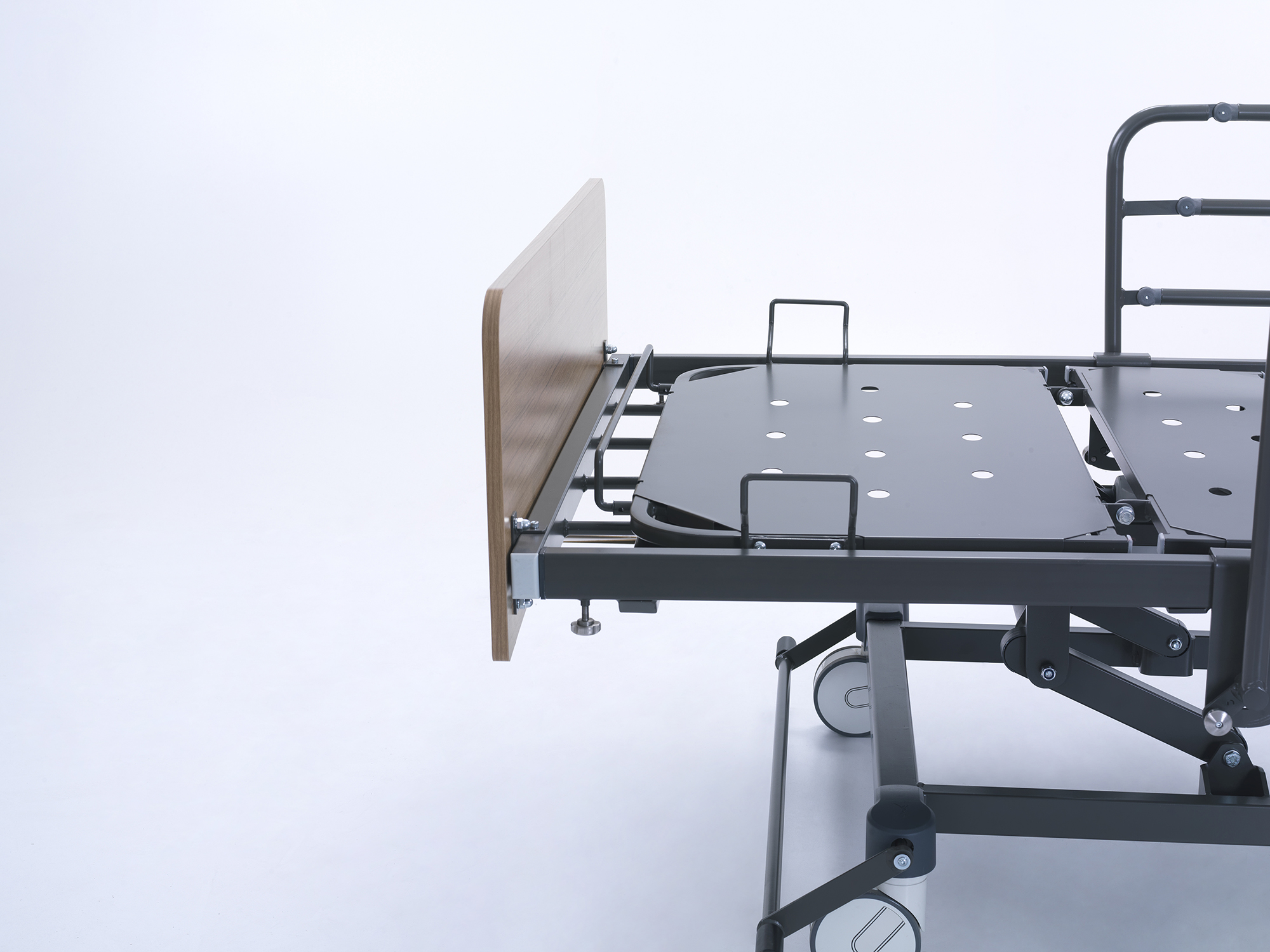

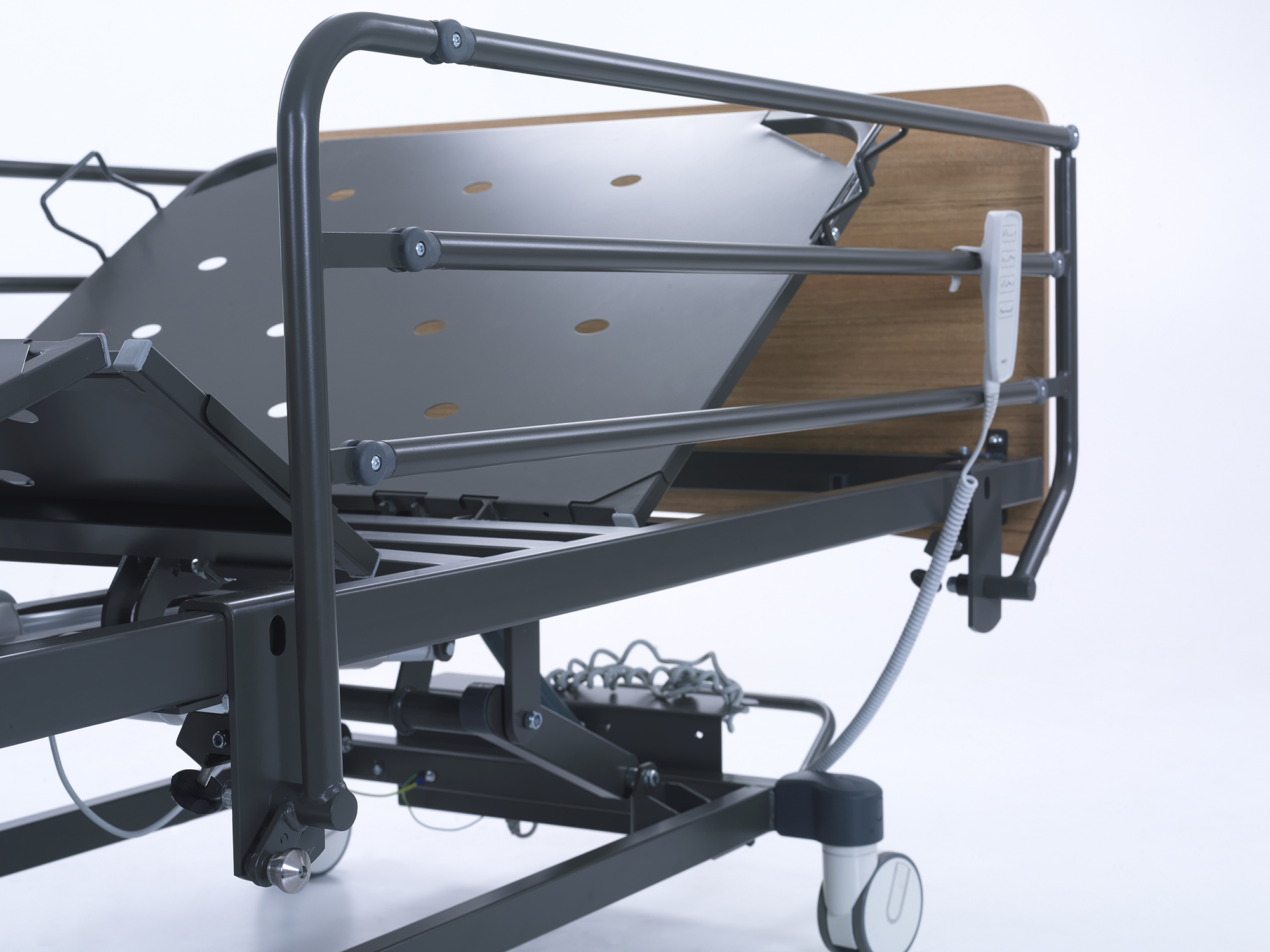

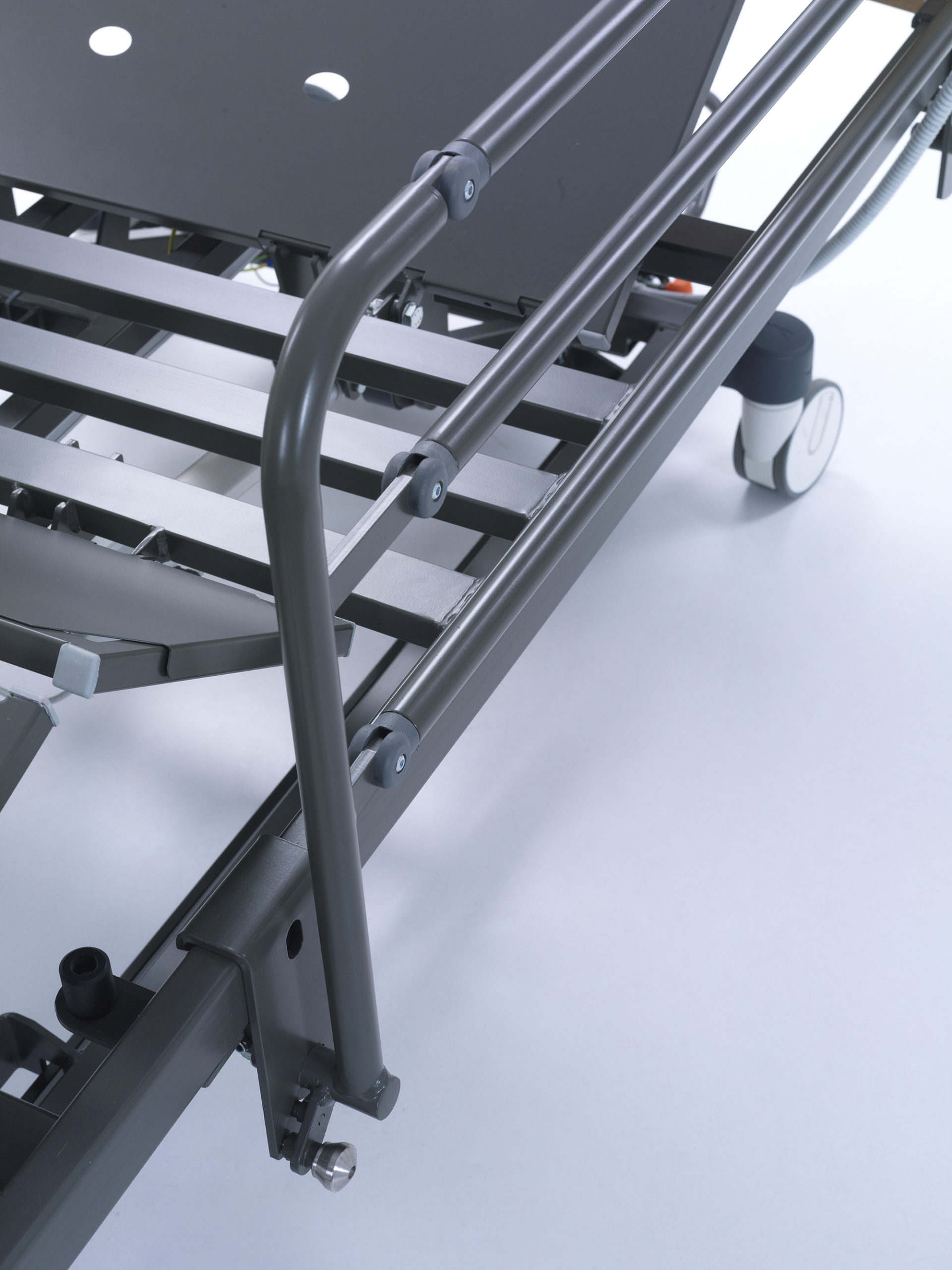

Head & foot boards ( 2 pcs ) + side rails ( 2 pcs ) structure: 2 head board produced with laminate + side rail produce with electrostatic powder cotated

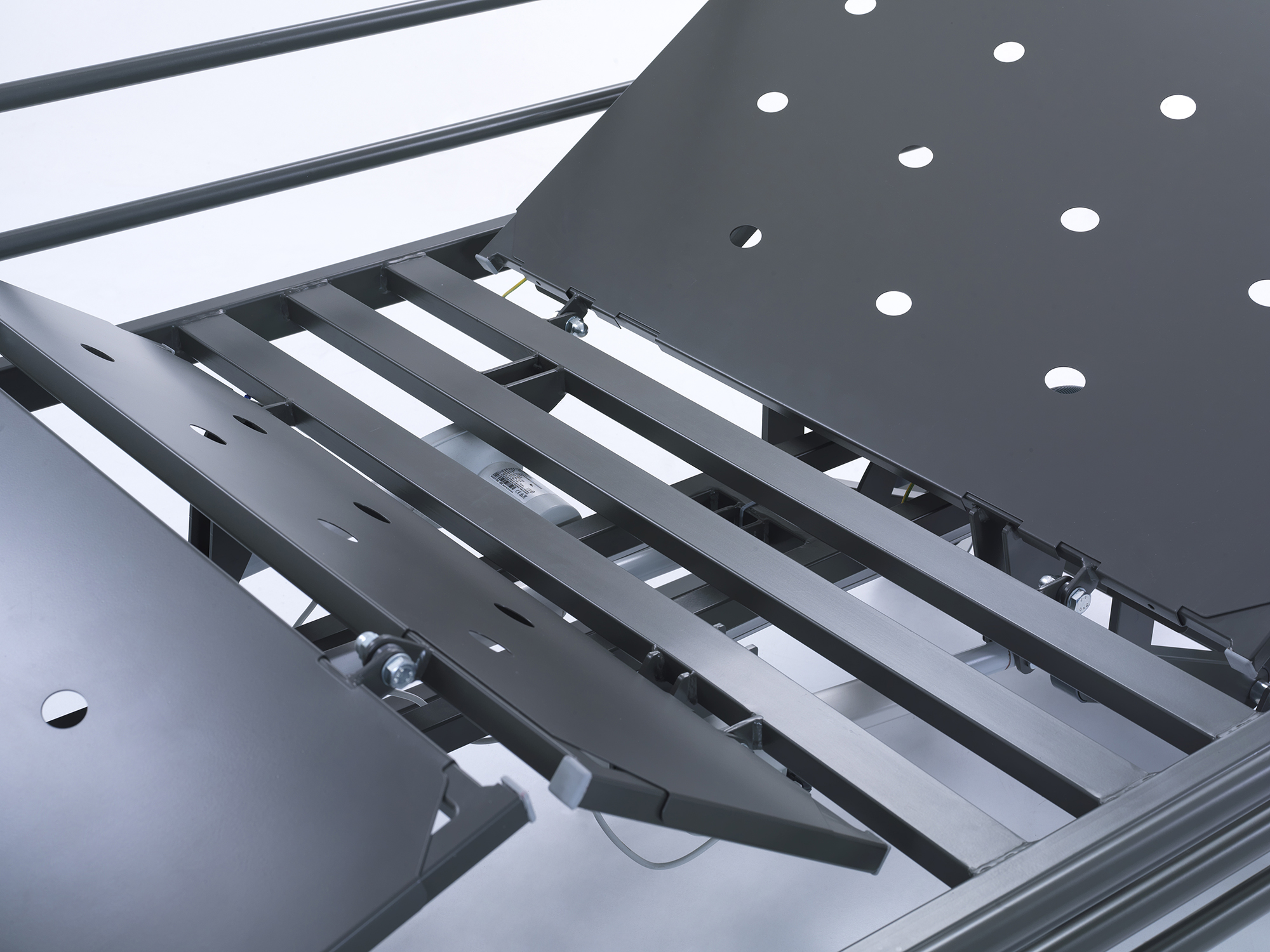

Bed surfaces: 1 mm electrostatic powder cotated metal sheet
Metal structure: Wall thickness for box profile : 1,2 – 3,0 mm. For pipe 1,2 – 3,0 mm
Coating type: After nano technology covered, electrostatic powder coating and coating thickness min : 40 – 90 µm.

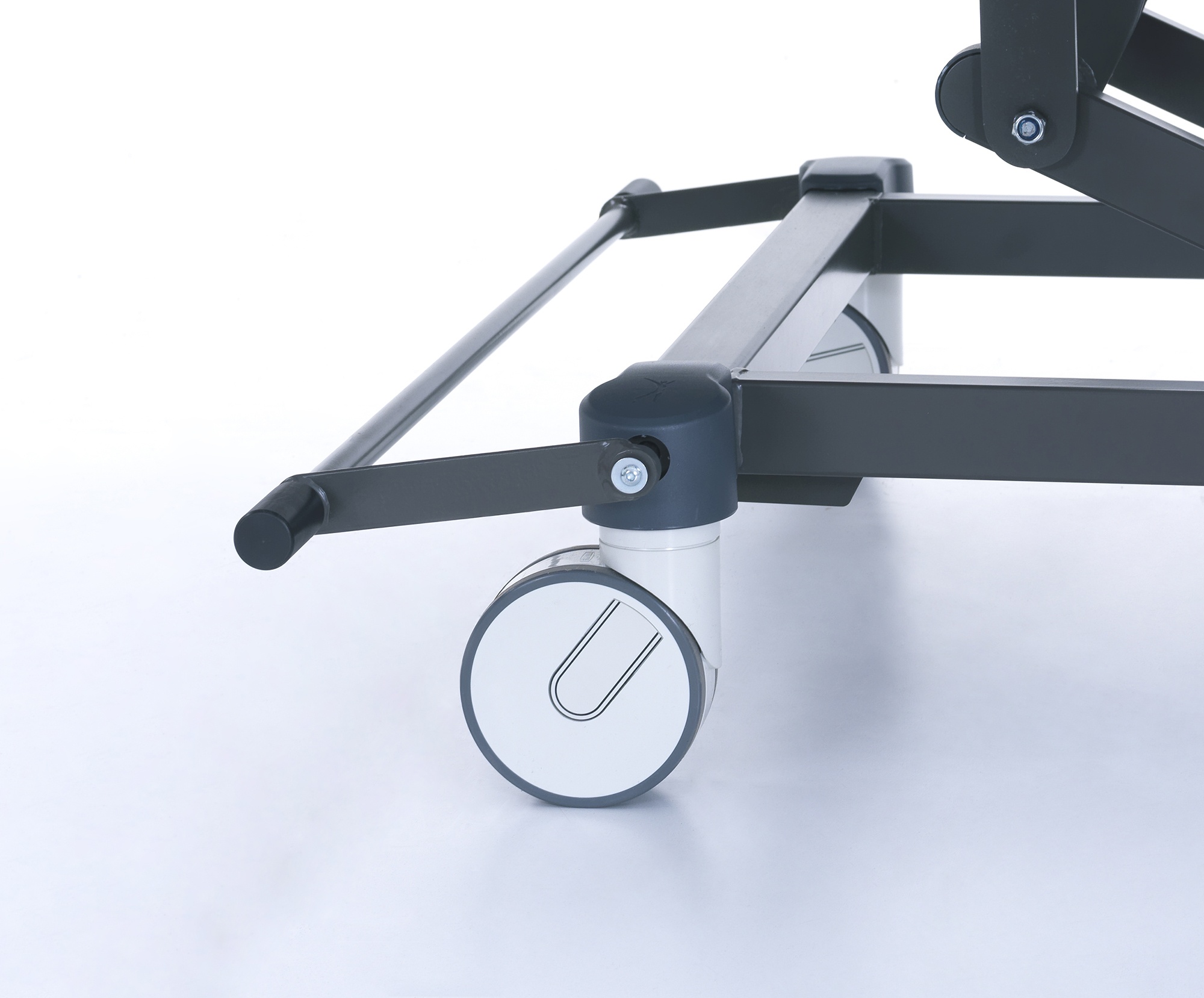

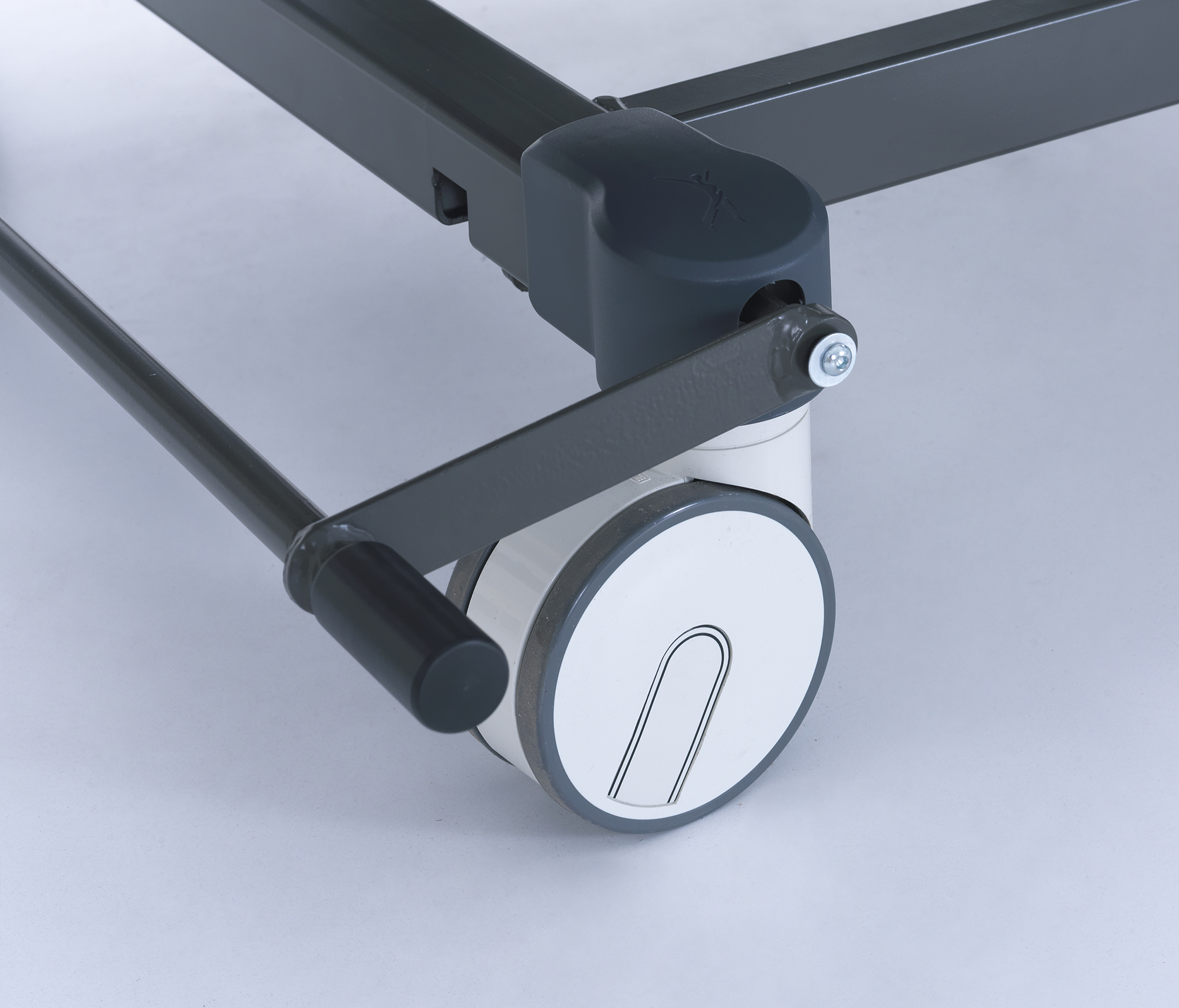

Castors: Diameter 125 mm / Tente, Haion or Rhombus brand. 4 pieces.
Locking of castors: Linear brake system
Auto regression: Yes. 100 mm

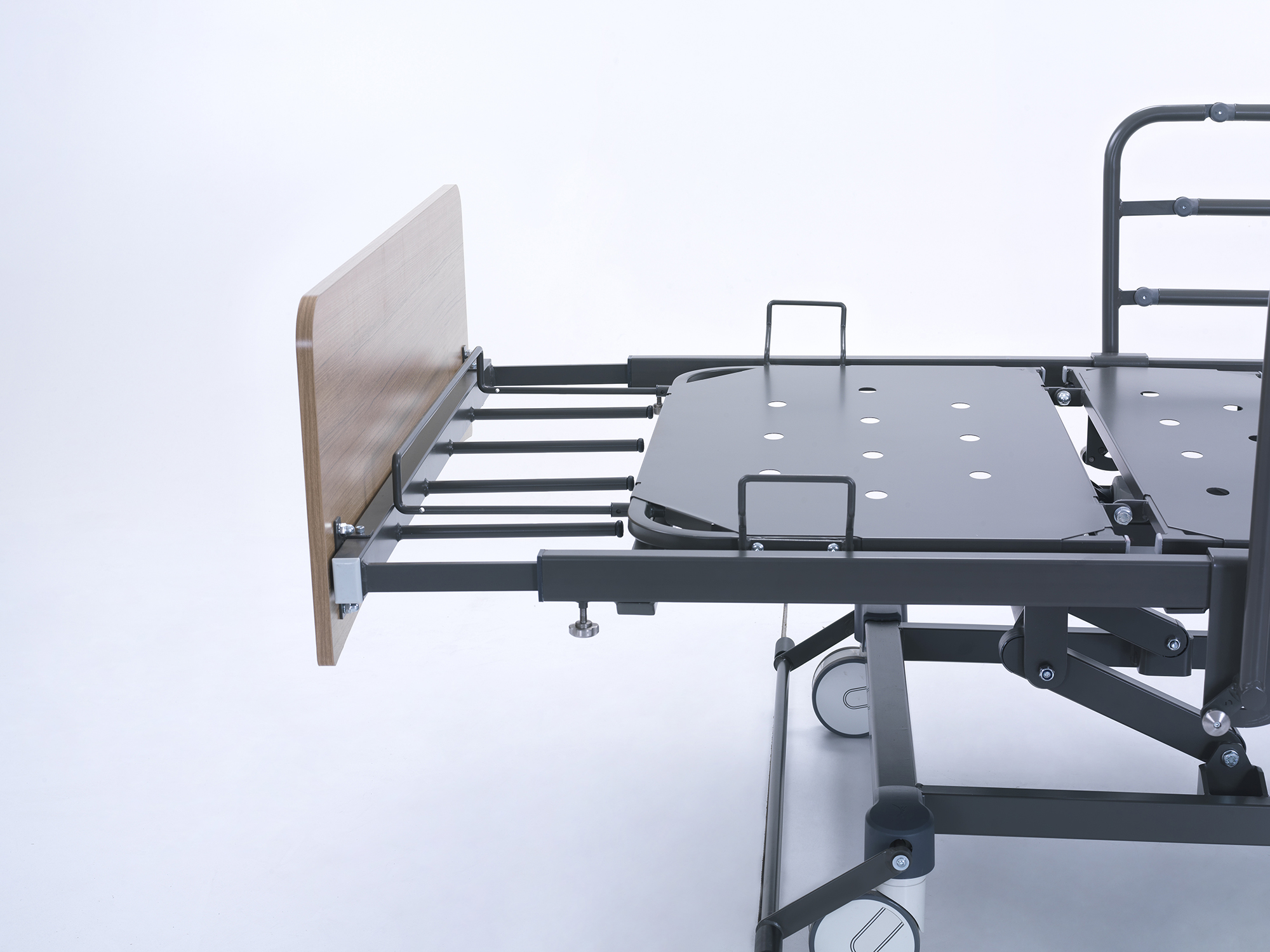

Bed extention: 180 mm bed extention
Infusion pole: Stainless steel, wall thickness 1,5 mm + pipe outside diameter 25 mm, inner diameter 19 mm, with 4 plastic hooks
Drainage hooks & urine bag holder: 2 pcs
Manual knee mechanism: Knee mechanism with ratchet mechanism
Bottom frame size: 30 x 50 x 2 mm / 50 x 50 x 3 mm
Upper frame size: 30 x 50 x 1,5 mm / 30 x 50 x 3 mm / 20 x 40 x 2 mm / 25 x 50 x 2 mm
Overall bed dimension / width: 1030 mm
Overall bed dimension / length: 2215 mm
Overall bed dimension / hight min: 290 mm
Overall bed dimension / hight max: 665 mm
Safety patient capacity: 300 kg
Guarantee: 2 years general + 5 years for motors
Certificates: CE, TSE, TUV, TUV THURINGEN, IQNET, ISO 9001:2008, TS 12559, TS 12487, TS 13005, TS EN ISO 13485, TS EN IEC 17025, ISO 14001, OHSAS 18001CE, FDA, SFDA etc.
